Scan-Speak - ¾" Revelator Dome Tweeter - D2104/712000
Scan-Speak - ¾" Revelator Dome Tweeter - D2104/712000
Regular price
$374.95
Regular price
Sale price
$374.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Supplier availability unconfirmed.
Couldn't load pickup availability
Description

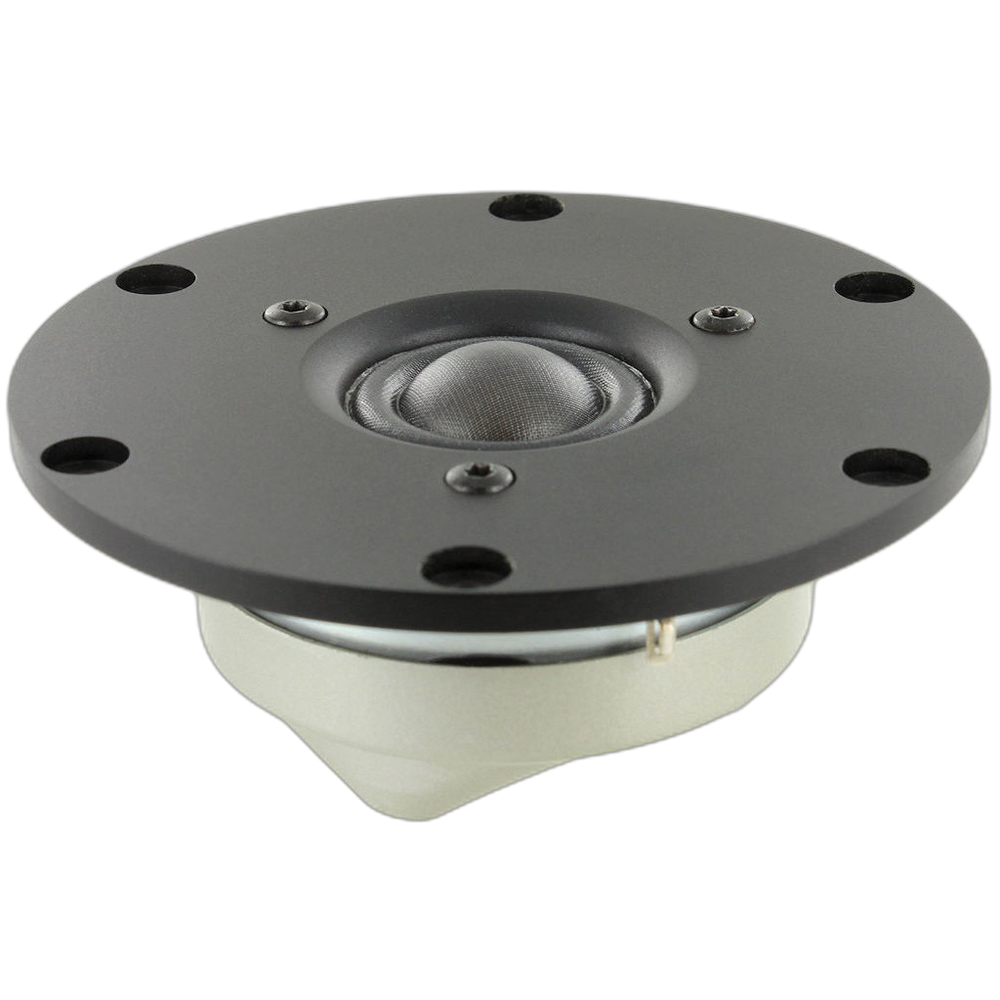

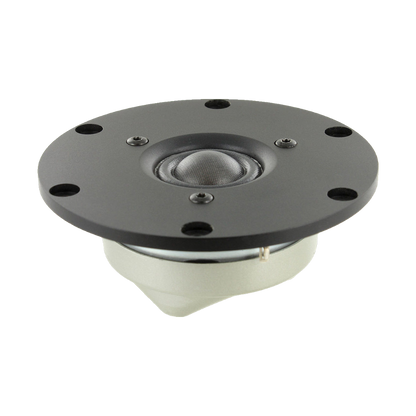

21 mm Dome Tweeter 4 ohm, Large Ring Neo, Black Faceplate
The large roll surround technology of the Revelator Tweeters represents a breakthrough in overall performance, with outstanding off-axis response, high output capability and low resonance frequency. A large neodymium magnet system for high sensitivity is part of the design. Additional enhancements have been made to reduce distortion and dynamic compression, such as a careful design to optimise airflow in the chambers.
Features
- Patented Symmetrical Drive (SD-2) motor
- Neodymium ring magnet system with double vent.
- High frequency extension beyond 40kHz
- Coated textile diaphragm w. large roll Surround
- Back chamber with high consistency felt pads
- Anodised Machined Alu Face Plate
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 0.75" |
| Nominal impedance | 4Ω |
| Series | Revelator |
| Power handling (RMS) | 50 W |
| Power handling (program) | 120 W |
| Sensitivity | 92 dB |
| Frequency range | 3,500 – 30,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 4 kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 500 Hz |
|---|---|
| DC resistance (Re) | 2.8 Ω |
| Minimum impedance (Zmin) | 3.5 Ω |
| Voice coil inductance (Le) | 0.02 mH |
| Mechanical Q (Qms) | 2.3 |
| Electrical Q (Qes) | 0.48 |
| Total Q (Qts) | 0.4 |
| Equivalent volume (Vas) | 0.01 L |
| Compliance (Cms) | 0.46 mm/N |
| Moving mass (Mms) | 0.22 g |
| Mechanical resistance (Rms) | 0.3 kg/s |
| Force factor (Bl) | 2 T·m |
| Effective piston area (Sd) | 4.5 cm² |
| Linear excursion (Xmax, one-way) | 0.5 mm |
| Mechanical excursion (Xmech) | 1.5 mm |
| Efficiency bandwidth product (EBP) | 1,042 |
| Effective piston diameter (D) | 24 mm |
| Impedance at resonance (Zo) | 11.3 Ω |
Motor
| Voice coil height | 1.8 mm |
|---|---|
| Air gap height | 4 mm |
| Voice coil layers | 2 |

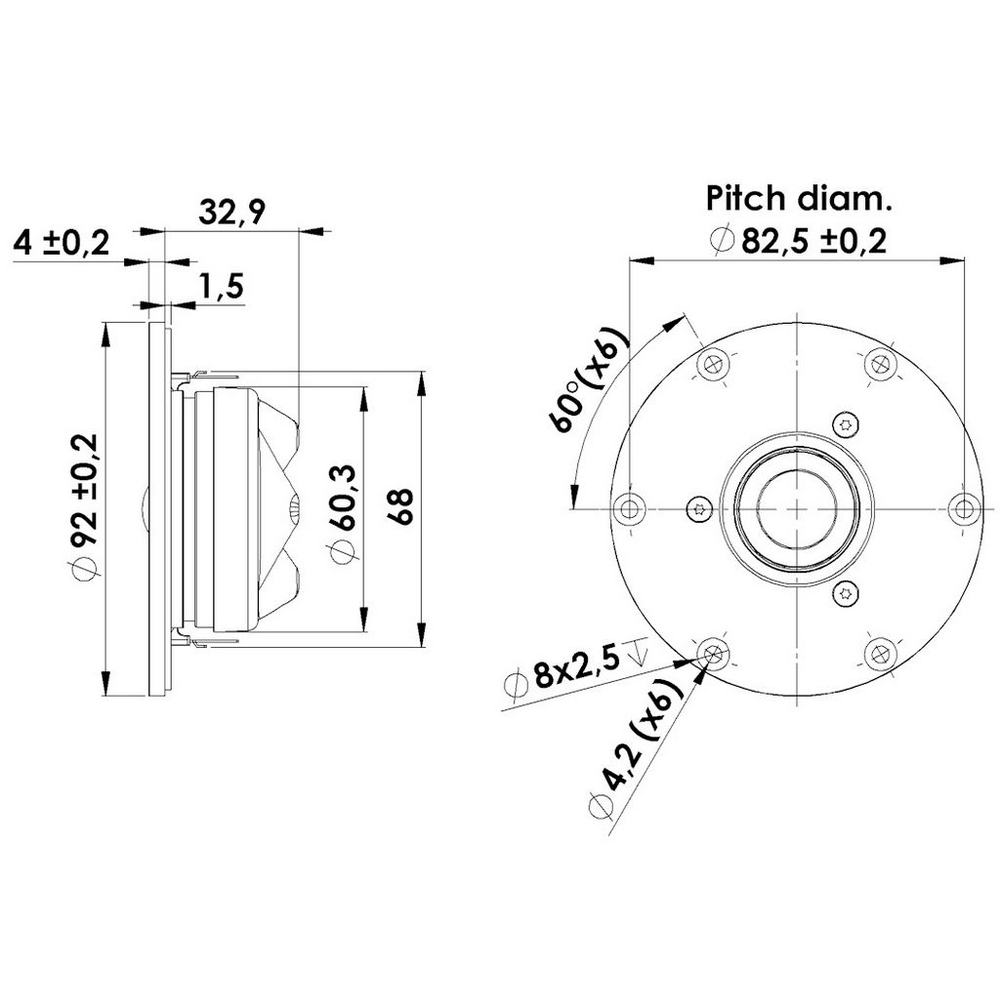

Mounting
| Overall diameter | 92 mm |
|---|---|
| Mounting depth | 32.9 mm |
| Flange thickness | 4 mm |
| Bolt circle diameter | 82.5 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 4.2 mm |
| Volume displaced by driver | 0.09 L |
| Voice coil diameter | 19.3 mm |
| Weight | 0.33 kg |
Materials
| Cone | Coated Textile |
|---|---|
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Where do these figures come from? See the source of each one
