Dayton Audio - 1½" DMA Passive Radiator - DMA45-PR
Dayton Audio - 1½" DMA Passive Radiator - DMA45-PR
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

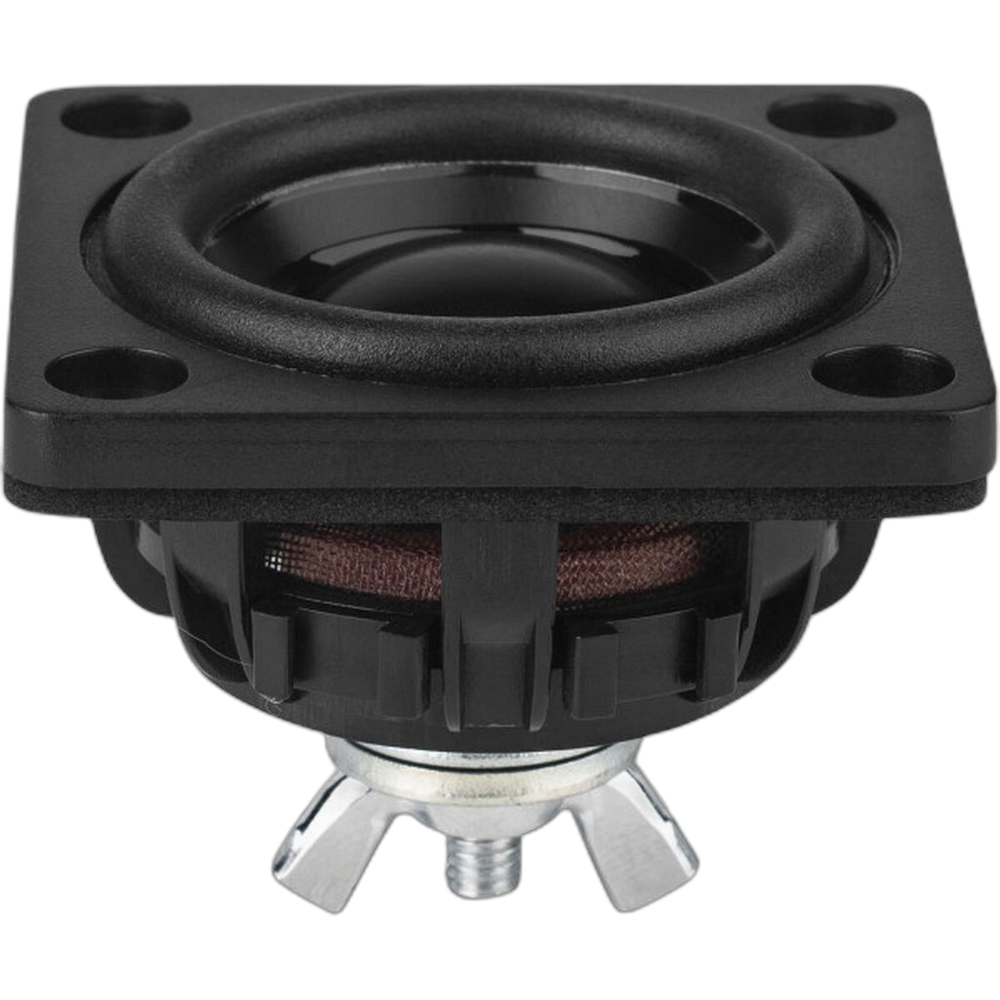

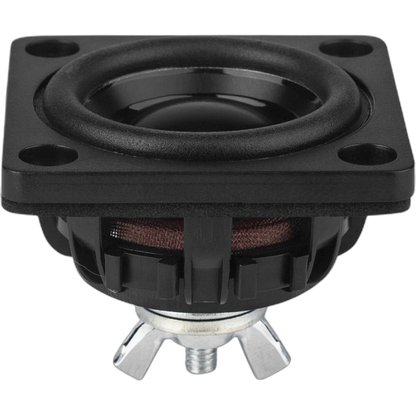

Dayton Audio's DMA45-PR 1-1/2" aluminium cone passive radiator allows you to tune small enclosures lower than using conventional ports. Matching the DMA45 drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers.

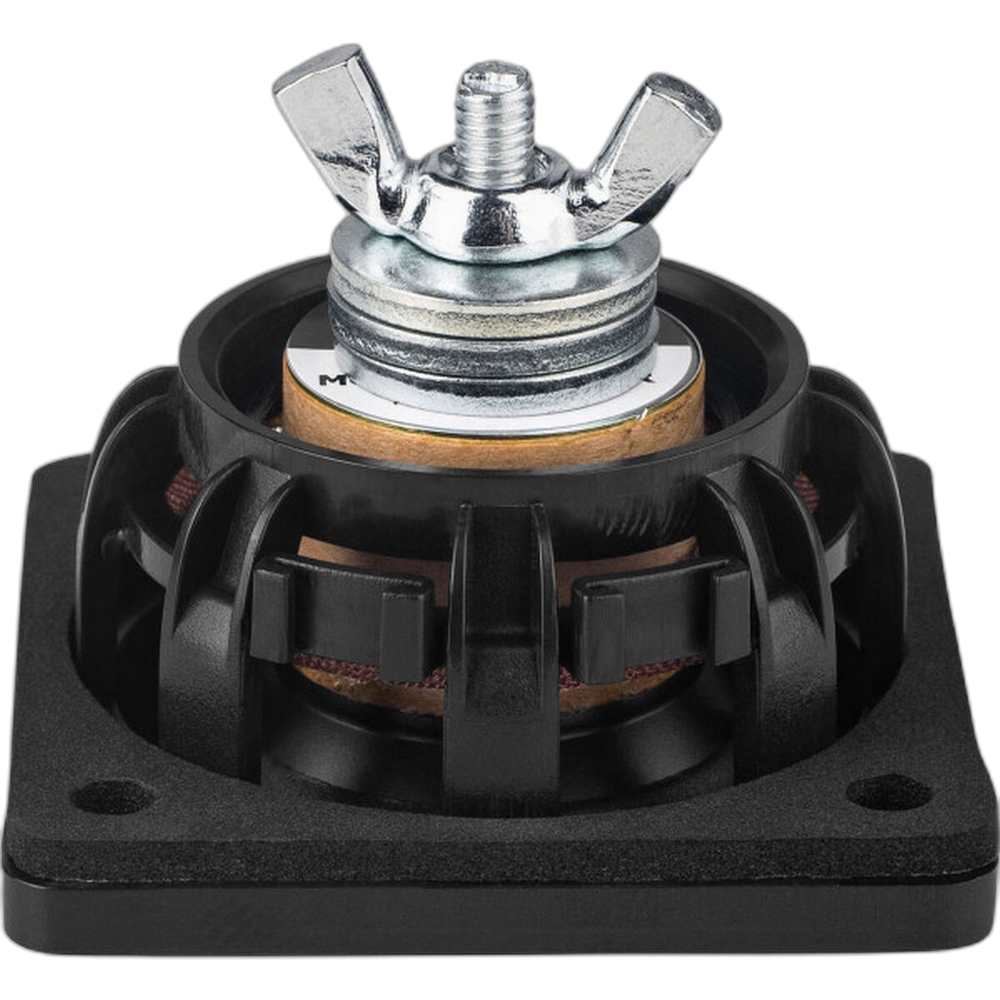

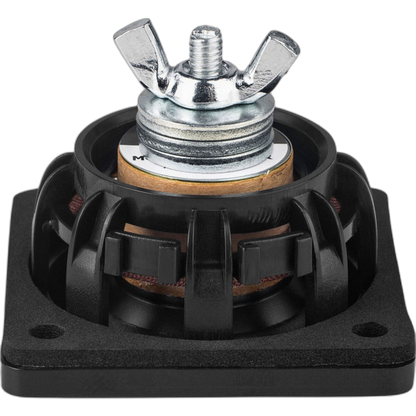

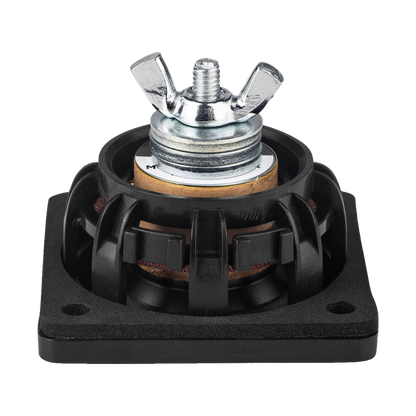

The DMA45-PR 1-1/2" passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminium cone, and rubber surround. Visually identical to Dayton Audio's full-range DMA series drivers, the DMA45-PR can be used with any mini-speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA45-PR introduces a new range of possibilities.
Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Features
- Perfect match for the Dayton Audio DMA series drivers
- Allows tuning small enclosures lower than using conventional ports
- Rear mounted threaded post allows easy mass adjustment for custom tuning
- DIY friendly, oversized mounting flange makes installation simple
Specifications
Specifications
General
| Driver type | Passive Radiator |
|---|---|
| Nominal size | 1.5" |
| Series | DMA |
Thiele/Small parameters
| Resonant frequency (Fs) | 60 Hz |
|---|---|
| Mechanical Q (Qms) | 2.75 |
| Equivalent volume (Vas) | 0.26 L |
| Compliance (Cms) | 2.12 mm/N |
| Moving mass (Mms) | 2.8 g |
| Mechanical resistance (Rms) | 0.38 kg/s |
| Effective piston area (Sd) | 8.6 cm² |
| Linear excursion (Xmax, one-way) | 5 mm |
| Displacement volume (Vd) | 4.3 cm³ |
Mounting
| Faceplate | Square, 46 × 46 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 41.0 mm |
| Mounting depth (estimate) | ≈ 33.3 mm |
| Weight | 0.04536 kg |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
- Xmax is quoted one-way (peak), not peak-to-peak.
Downloads
- DMA45-PR Specification Sheet
- DMA45-PR Cutout & Recess Template (NB Audio) Straight off Dayton Audio's spec sheet: flange outline, recess depth, bolt holes. Scaled from Dayton Audio's drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Some figures here aren't checked against Dayton Audio's datasheet yet. See which
