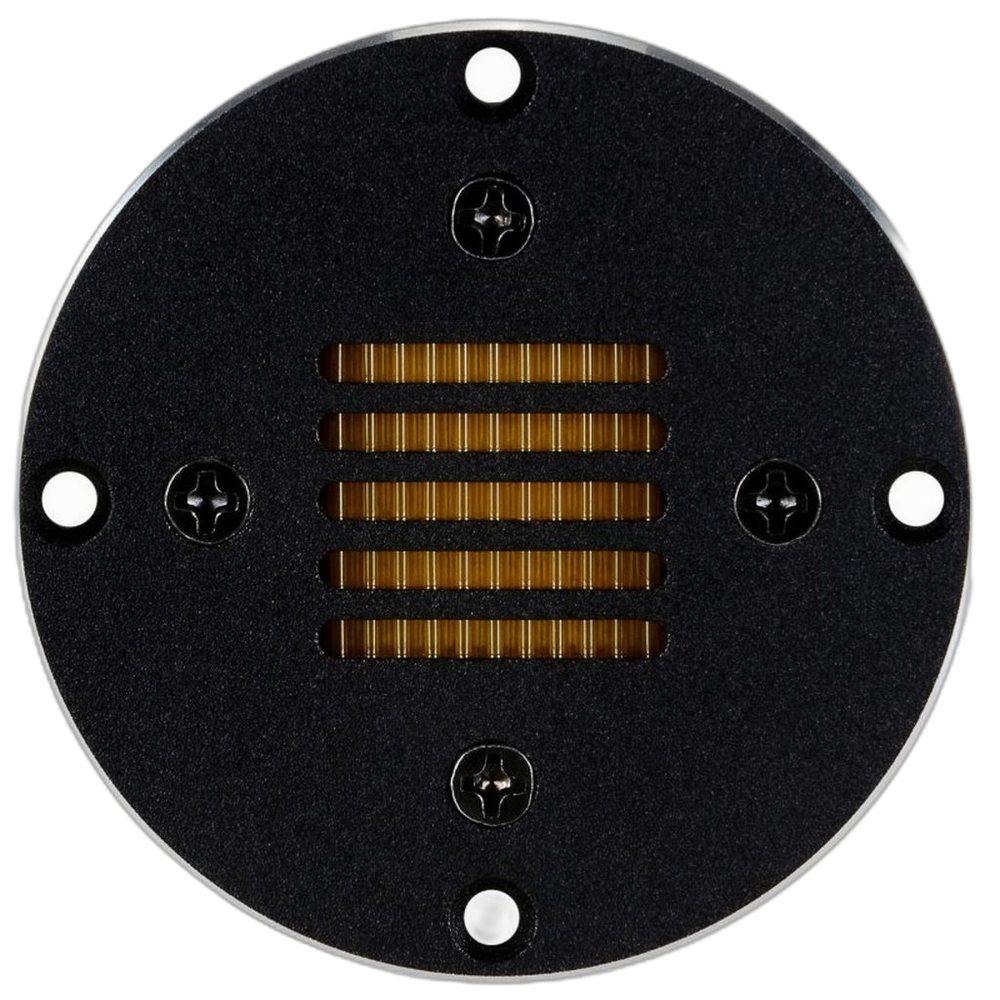

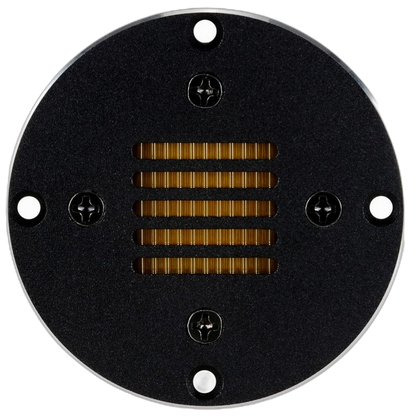

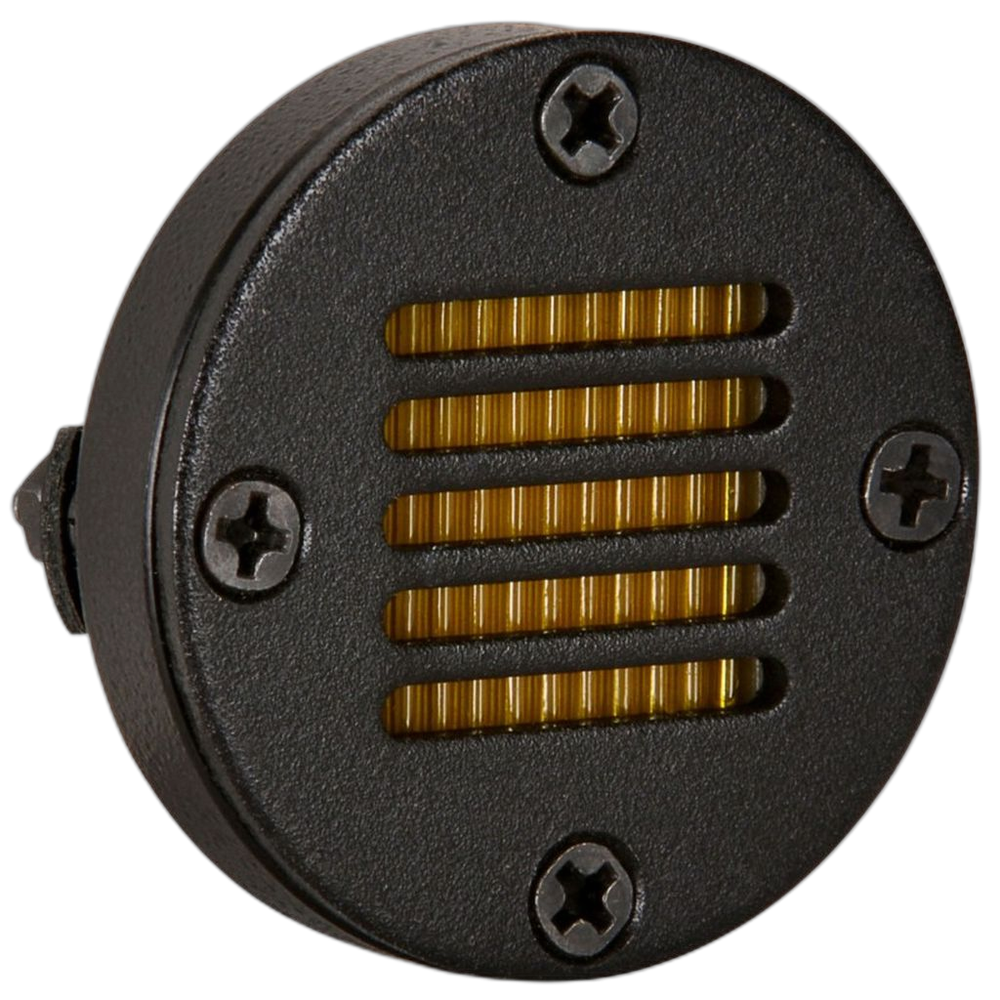

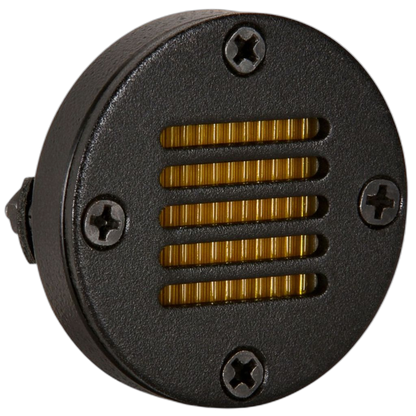

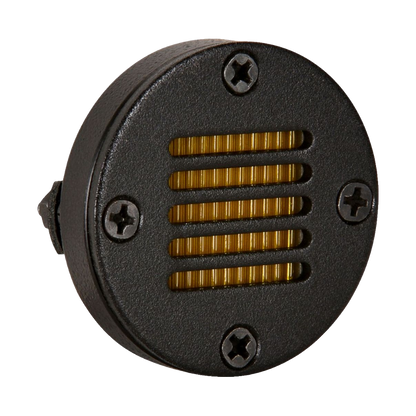

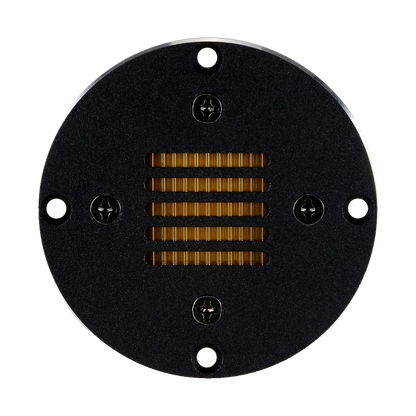

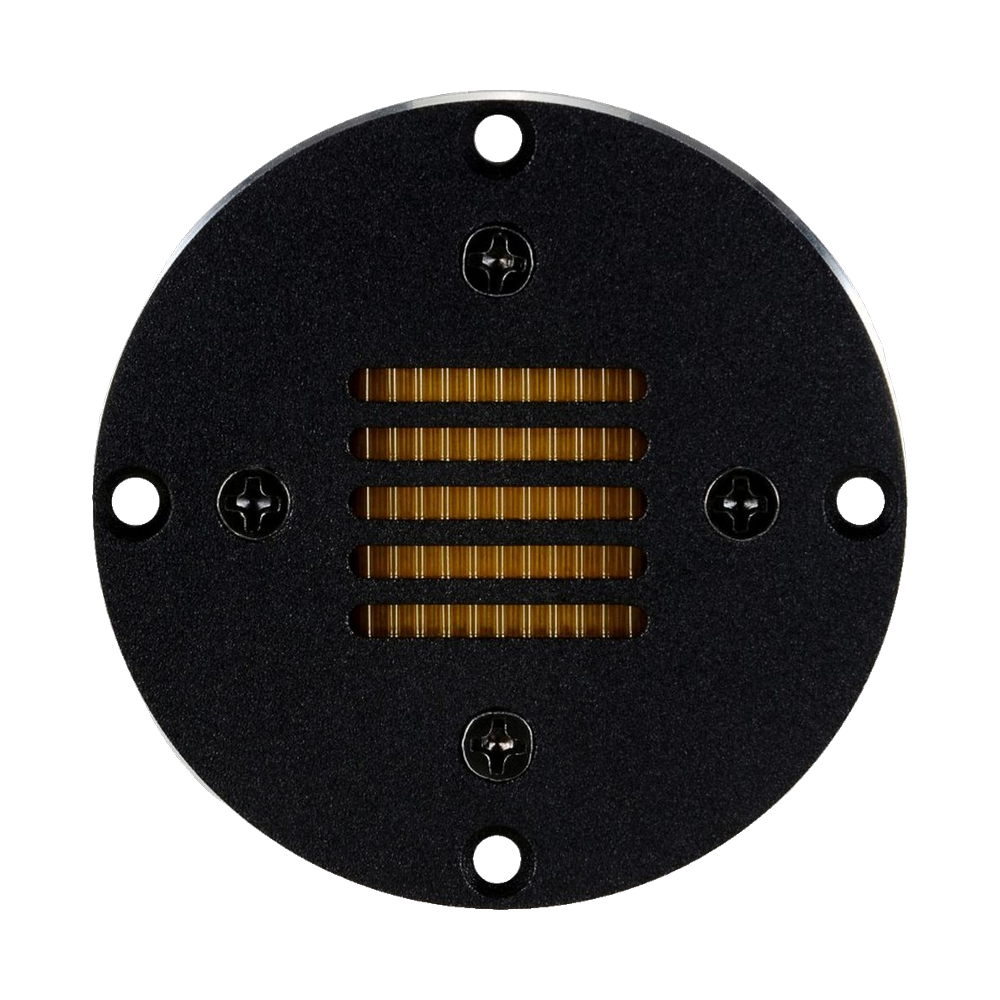

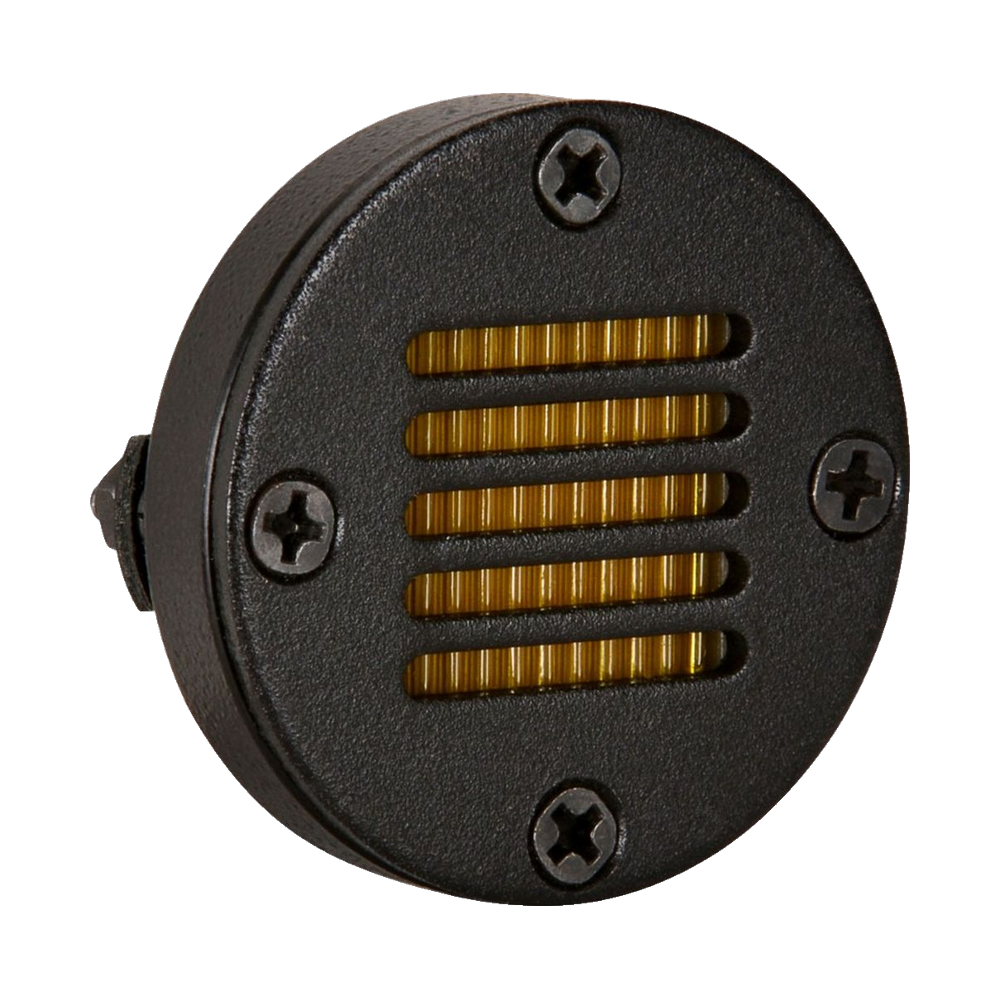

Dayton Audio - 40mm AMT Tweeter - AMTMINI-8

Dayton Audio - 40mm AMT Tweeter - AMTMINI-8

Regular price $68.95
Regular price Sale price $68.95
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.

View full details

Description

Introducing the AMT Mini-8 Air Motion Transformer tweeter from Dayton Audio—your key to unlocking incredible clarity, lightning-fast transient response, and exceptional musicality in any loudspeaker design. With its impressive frequency range extending up to 40,000 Hz, this tweeter is the ideal solution for high-resolution audio systems that demand precision and detail. Its compact housing allows for effortless integration into various setups, while cutting-edge AMT technology ensures robust output from this remarkably small driver. Integrate the AMT Mini-8 into your speaker designs and experience the difference.

The Dayton Audio AMT Mini-8 model features a round housing and compact AMT element, for wide dispersion that easily replaces dome tweeters in retrofit or new design applications. The AMT Mini-8 is small enough to be used in compact satellite speakers, or installed in the centre of a mid-woofer to create a full-bandwidth coaxial driver, or implemented in other ways -- including line arrays. The sealed rear chamber design of the AMT Mini-8 eliminates the need for a separate internal chamber in the loudspeaker enclosure.

Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original ESS/Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.

Note: This tweeter is designed for press-fit mounting.

Features

  • Advanced Air Motion Transformer design delivers smooth response up to 40,000 Hz
  • Folded Kapton ribbon diaphragm delivers clean, detailed, and highly dynamic output
  • Compact design and Hi-Res capability, ideal for use as a super tweeter
  • Powerful, lightweight neodymium magnet structure for low distortion and high efficiency
  • Sonically similar to the best metal ribbon and planar tweeters

Specifications

General

Driver type Tweeter
Nominal size 1.5"

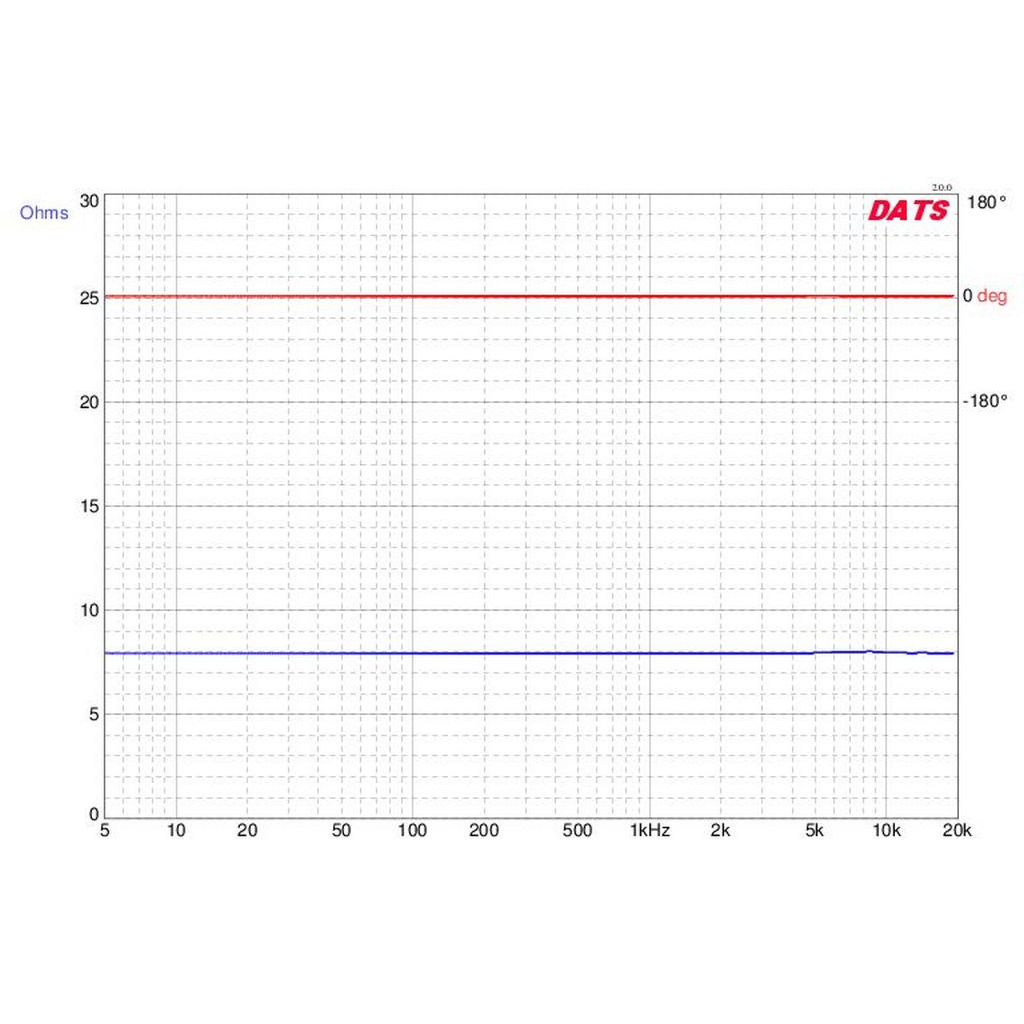

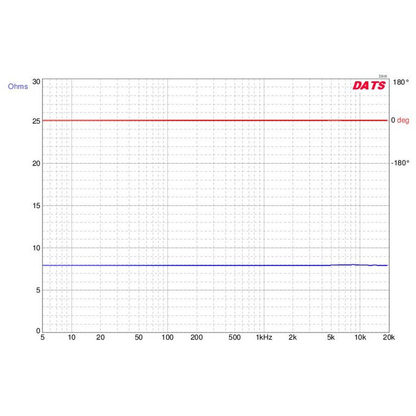

Nominal impedance 8Ω
Series AMT
Power handling (RMS) 15 W
Power handling (program) 30 W
Sensitivity 88 dB

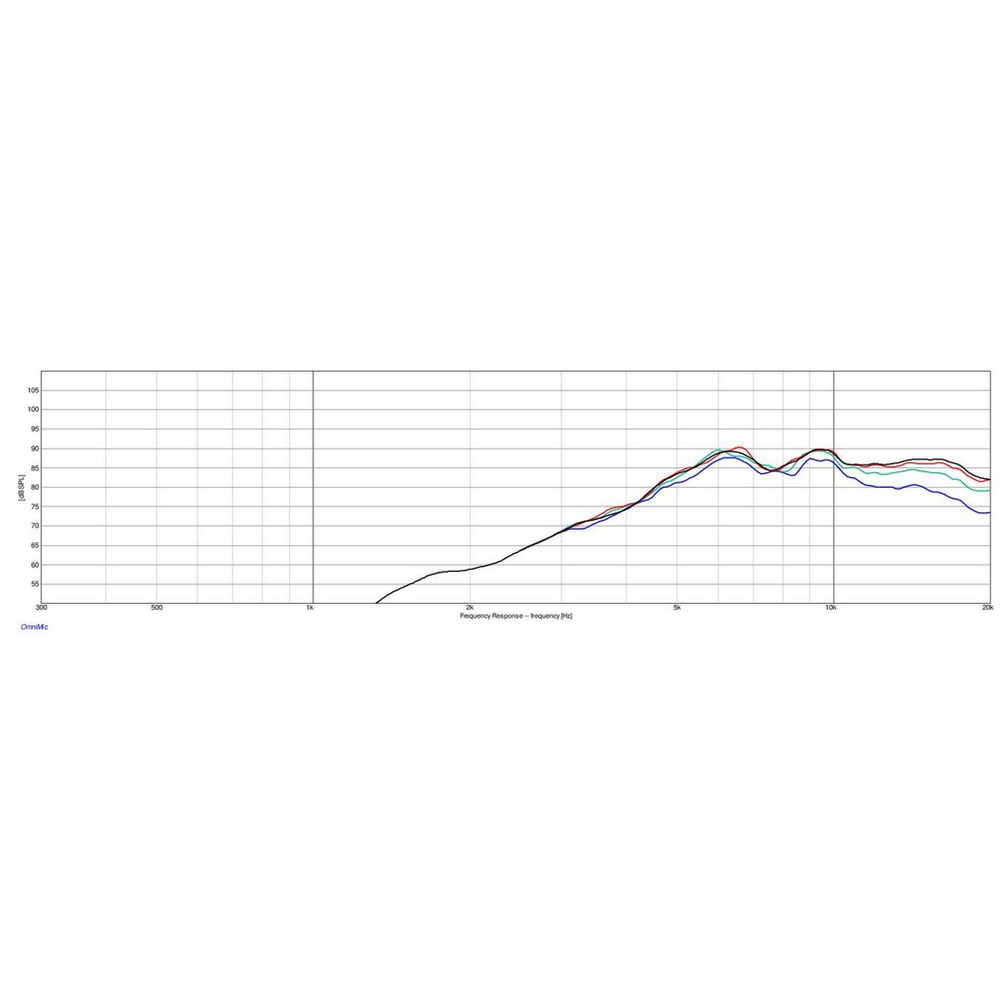

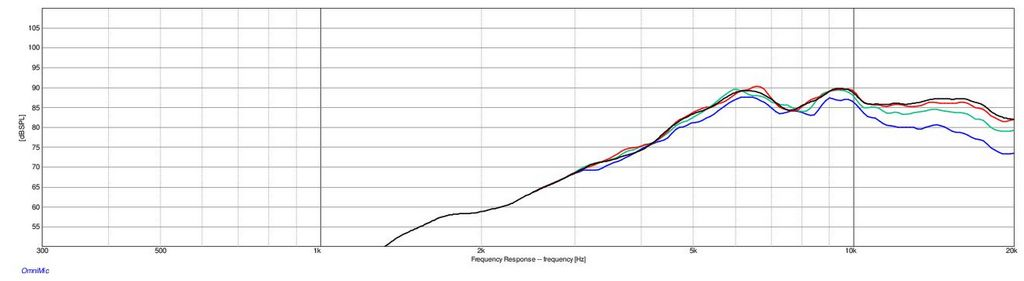

Frequency range 3,500 – 40,000 Hz

Thiele/Small parameters

DC resistance (Re) 7.92 Ω
Mechanical Q (Qms) 1.86
Total Q (Qts) 1.84
Effective piston area (Sd) 3.8 cm²

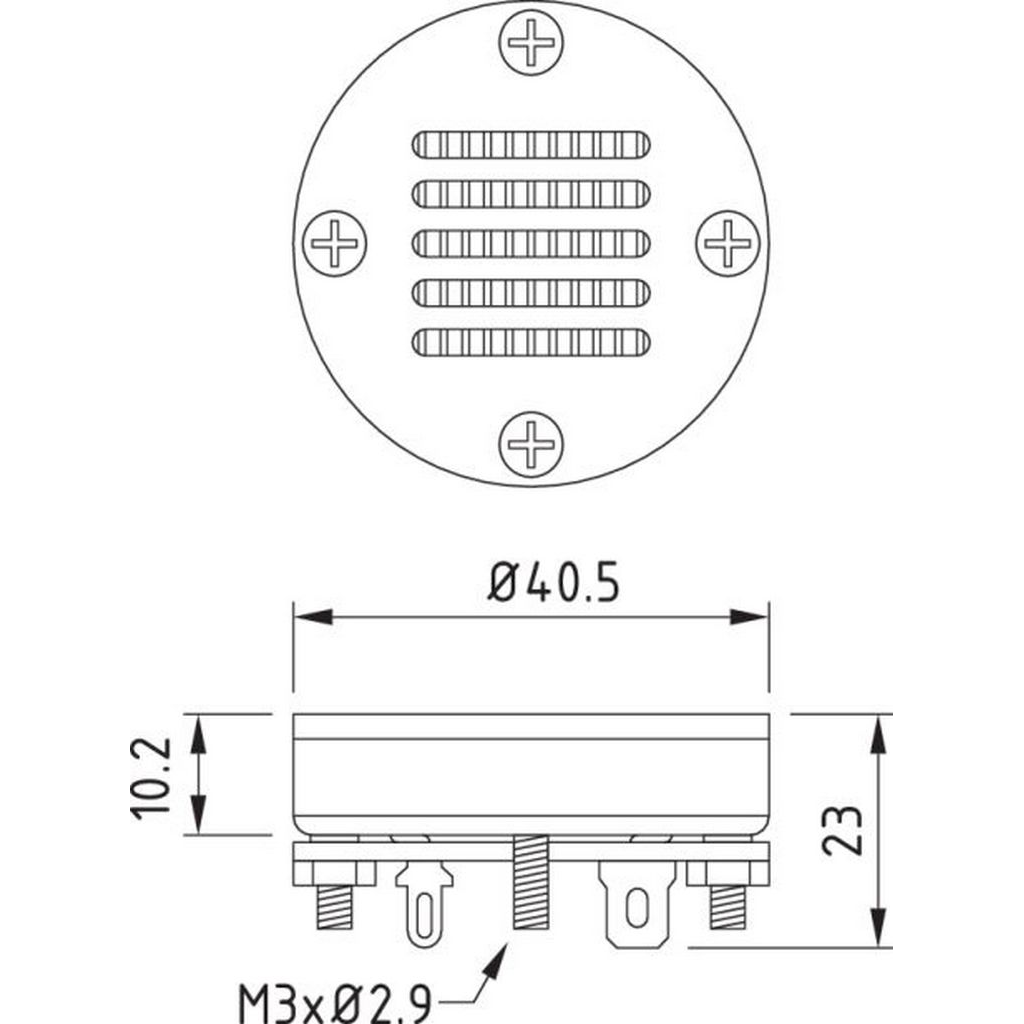

Mounting

Overall diameter 56 mm
Cutout diameter (suggested) ≈ 41.5 mm
Mounting depth 23 mm
Flange thickness 2 mm
Bolt circle diameter 49 mm
Mounting holes 4
Mounting hole diameter 3.2 mm
Weight 0.05897 kg

Materials

Cone Kapton
Magnet Neodymium
  • Sensitivity measured at 1W/1m.
