Dayton Audio

Dayton Audio - 4mm Insulated Speaker Post Pair - BPFI-NI

Dayton Audio - 4mm Insulated Speaker Post Pair - BPFI-NI

Regular price $84.95
Regular price Sale price $84.95
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.

View full details

Description

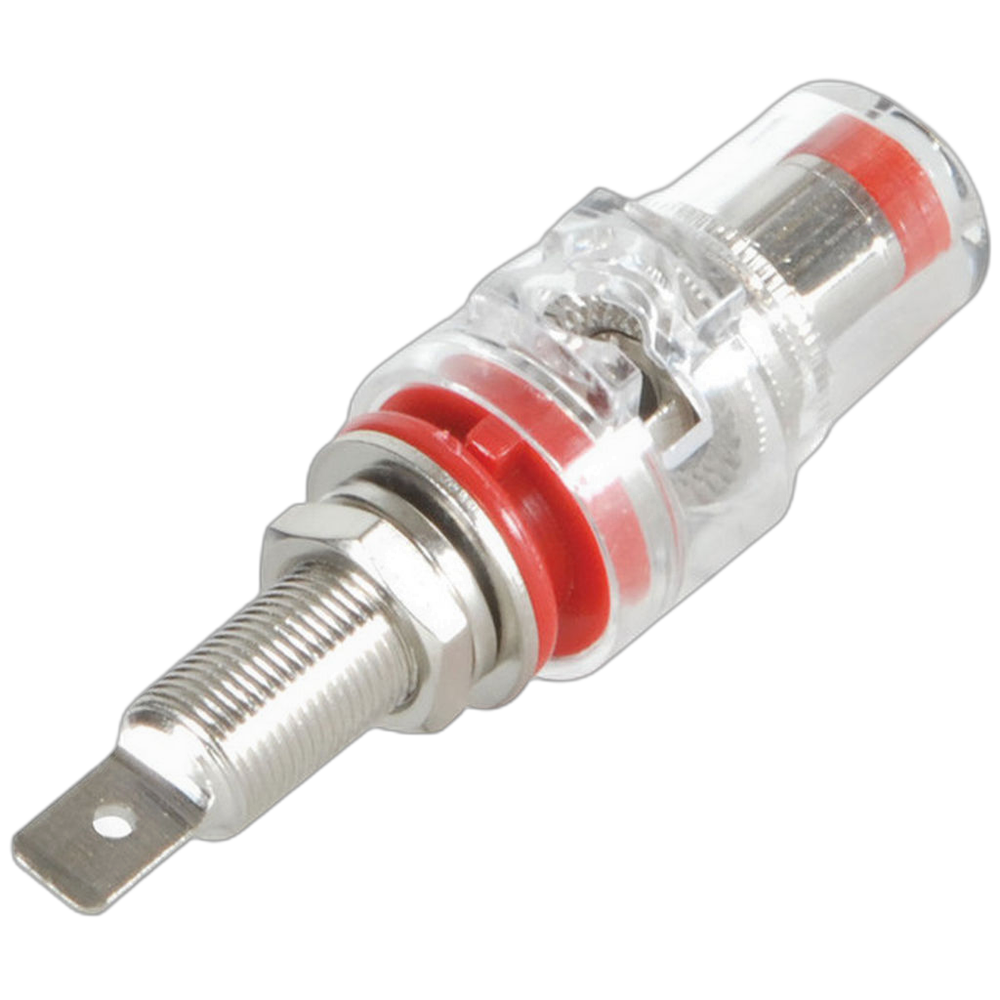

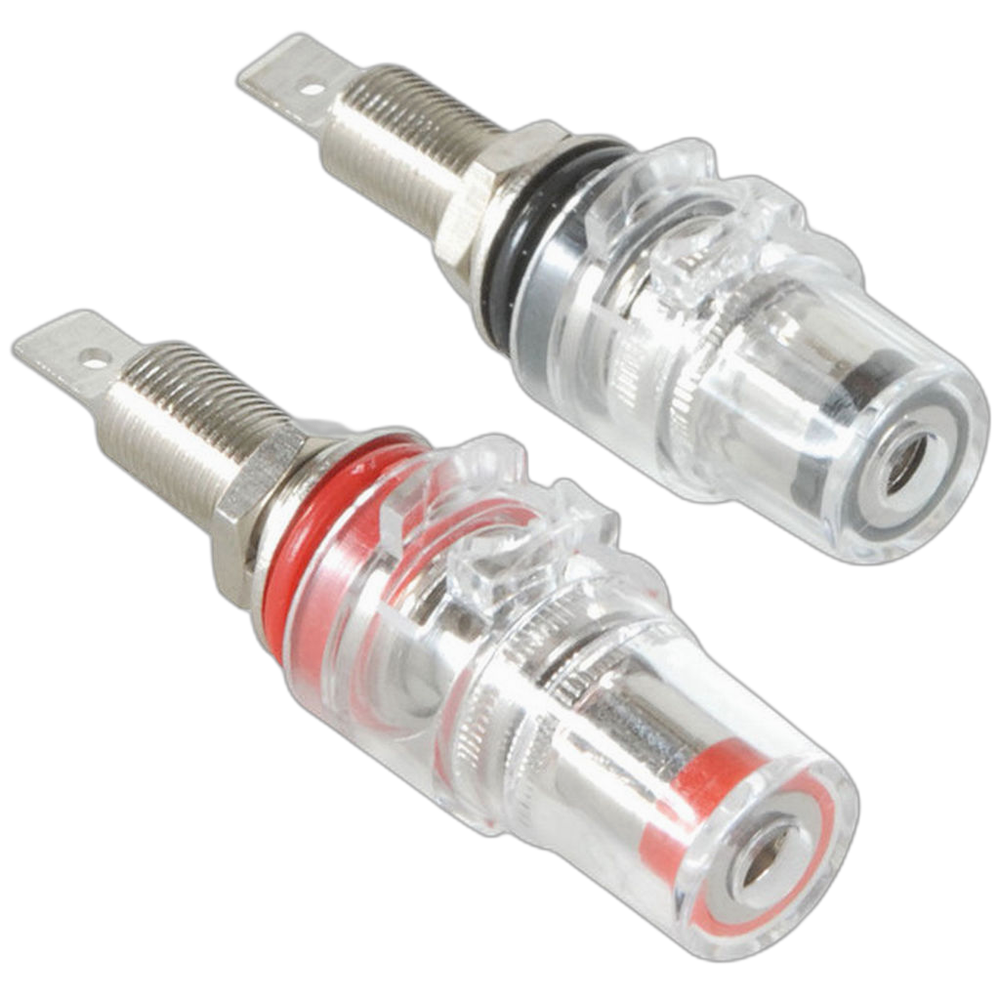

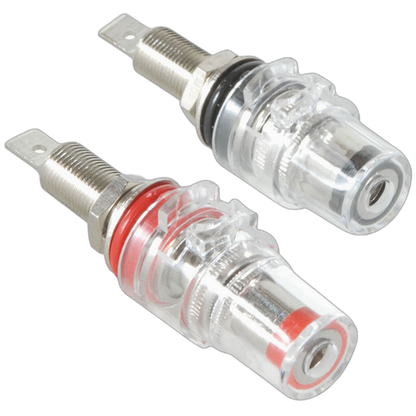

These high-quality 5-way binding posts features fully insulated design to prevent accidental shorting of speaker wires. A free-spinning metal ferrule on the tightening knob allows a secure connection without any tendency to work loose. The cabinet ends are terminated with 6.35mm male-disconnect-style tabs, which allow the use of standard female disconnects and also heat quickly for direct soldering. Work with the Dayton Audio Binding Post Plates or any cabinet panel with a keyed 11.5 mm hole; 25 mm thread length. The fine thread is 8.7mm in diameter. Sold in red/black pairs.

Specifications

Colour Nickel
Manufacturer Dayton Audio
Type Nickel

Specifications

Mounting

Hole per post 11.5 mm, keyed
Key A 2.3 mm rib on the insulating bush, running out to its Ă˜16.3 flange
Designed for Dayton Audio binding post plates, such as the SBPP-BK (posts 30 mm apart), or any cabinet panel with a keyed 11.5 mm hole and 25 mm thread length
Depth behind the mounting face 31.4 mm (computed from the drawing)

Size

Body Ă˜19.2 mm, 25.5 mm above the face
Rear thread 25 mm long
Tabs .250" (6.35 mm) male disconnect
  • Figures from Dayton Audio's product page and mechanical drawing (11/2016).
  • Depth behind the mounting face is computed from the drawing: the thread and the tab, from the face the post is mounted on (a plate's face, on a plate).

Some figures here aren't checked against Dayton Audio's datasheet yet. See which
