NB AUDIO - NPA DSP Plate Amplifiers

***NOW AVAILABLE FOR PRE-ORDER WITH A 10% DISCOUNT***

Our NPA Plate Amplifiers are available to pre-order, with discounts that scale based on when you place your order. Early orders receive the largest savings and will be shipped sooner, while later orders receive a smaller discount and ship a little later. Full details on dates, discounts, and shipping estimates can be found in the table below.

We have successfully completed prototypes and are currently working on producing units, taking and uploading product photos and sorting documentation. In the meantime, we have made our 'Pre-Release' User Guide available which you can find here.

As always, you are more than welcome to get in touch with us at sales@nbaudio.com.au or via or chat function if you would like more information.

Description:

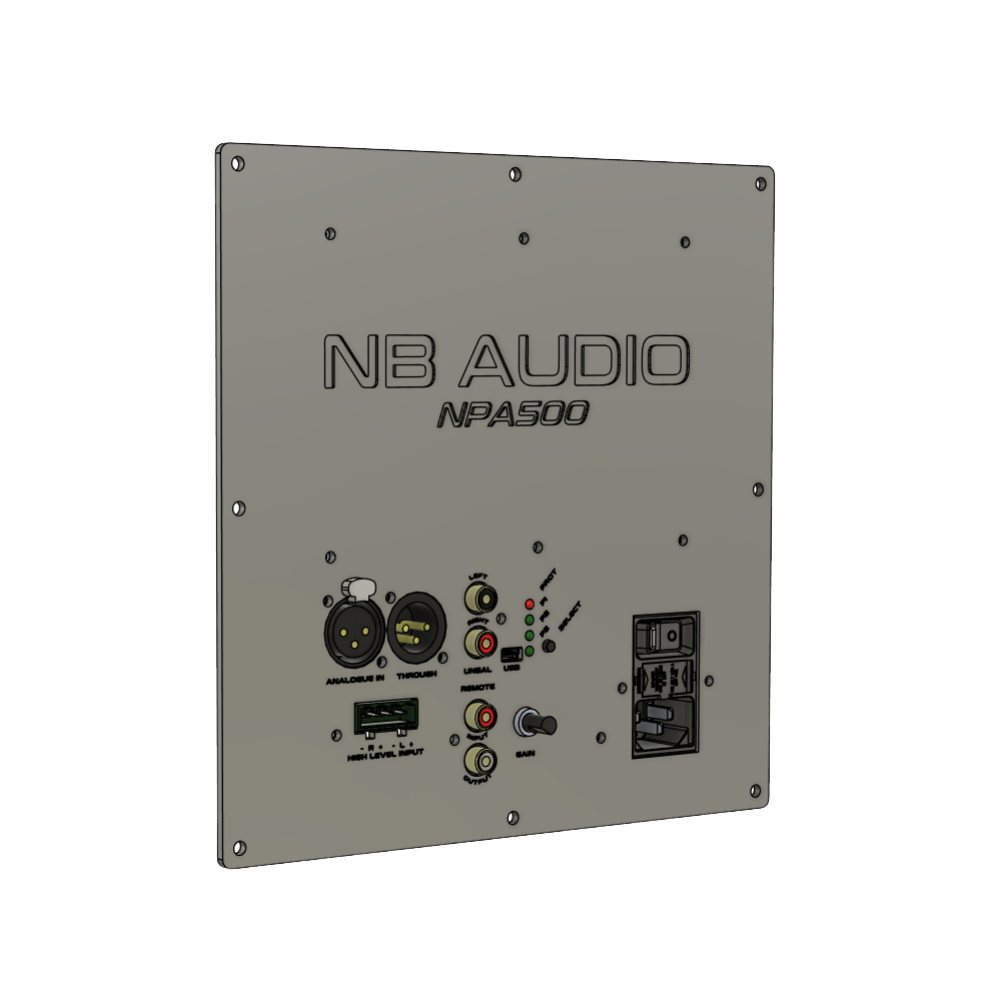

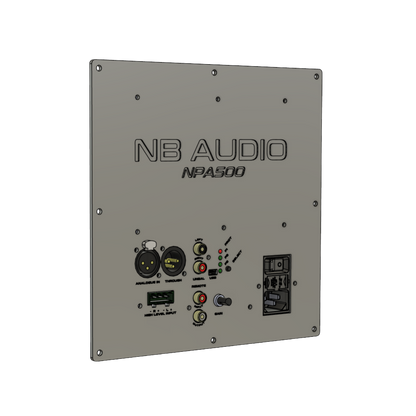

Introducing NB Audio's "NPA" (No Bullsh*t Plate Amplifier) range! Featuring the same Ultra-Low distortion NCORE amplifier technology found in our 'NAOS' amplifier combined with DSP for ultimate tuning and customisation. Our 'NPA' range takes one of the highest quality amplifier modules ever built, adds DSP and attaches it all onto a plate manufactured 100% in house using Australian Made aluminium for easy installation into speaker or subwoofer builds!

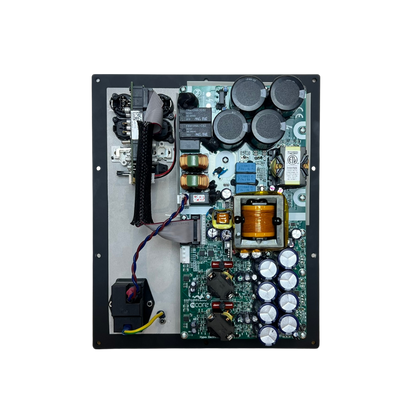

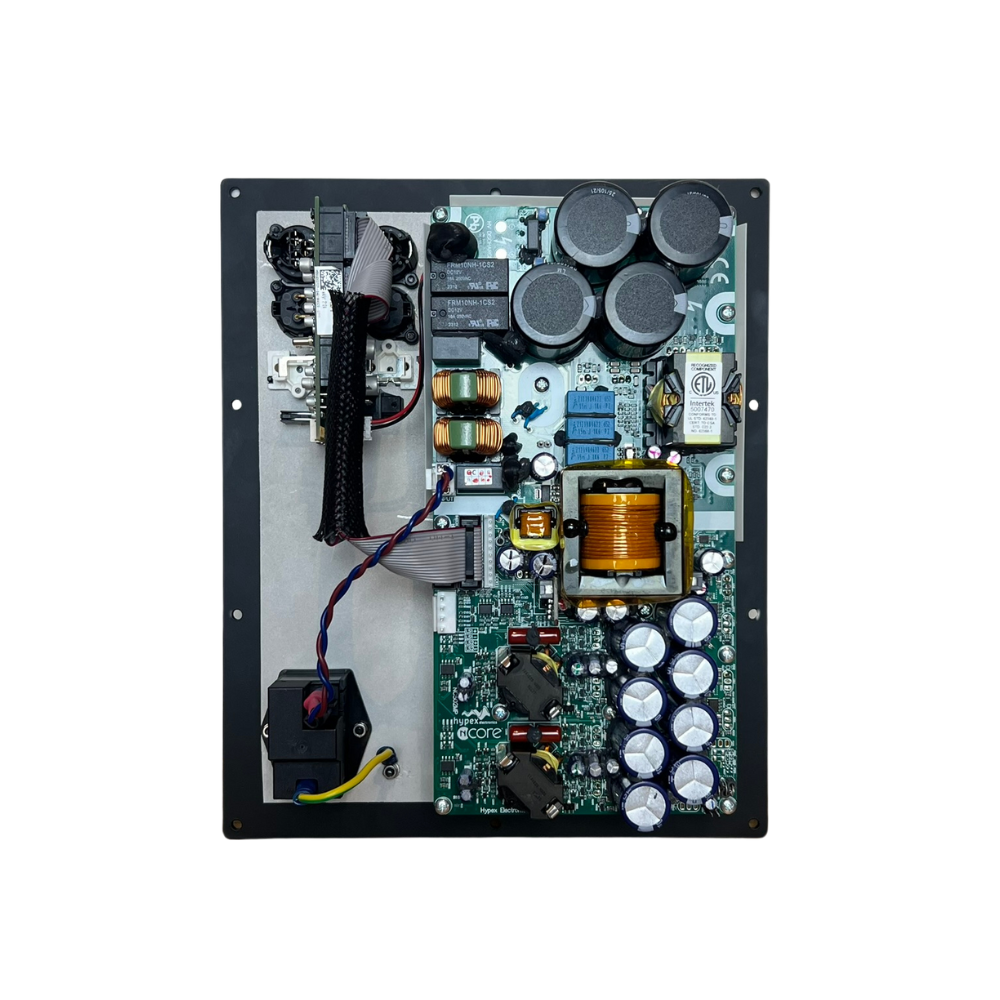

Hypex's Ncore technology has changed the way we see Class D amplification by overcoming many of the traditional limitations associated with Class D designs, such as high distortion and limited fidelity at higher frequencies. Unlike earlier Class D amplifiers, which were often criticized for lacking the warmth and clarity of Class A or AB designs, Ncore technology offers a combination of ultra-low distortion, high efficiency, and exceptional linearity across the frequency range. This breakthrough in switching amplifier design has redefined expectations, making Class D amplifiers viable for high-end audio applications where accuracy and sound quality are paramount. The result is an amplifier that not only delivers clean, powerful sound but also runs cooler and more efficiently, making it suitable for a wide range of audio setups.

The Range:

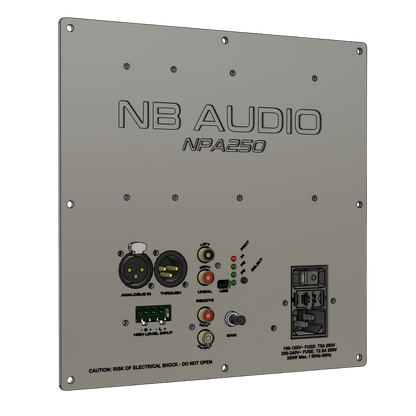

The NPA Plate Amplifier range includes various models designed to match different subwoofer driver power and impedance requirements.

All power ratings are at 0.1% THD+N @ 1khz (unless noted otherwise). For comparison, most plate amplifiers are advertised at 1% THD+N @ 1khz. 10x the distortion of our range of plate amplifiers.

Many manufacturers also quote max/peak/burst figures for their power ratings. All our power ratings are RMS/Continuous.

We've compiled an FAQ which elaborates on our range and will help you choose a suitable amplifier. You can find it here.

The NPA2500 has been delayed while we overcome hurdles associated with native implementation of Hypex DSP. Currently release date is unknown.

Custom Plate Amplifier Options:

As we handle the entire plate manufacturing process of our NPA Plate Amplifiers in-house, we’re able to offer fully custom plates tailored to your enclosure and design goals.

You can find out more here.

Features:

• Licensed Australian Made
• 5 Year Warranty

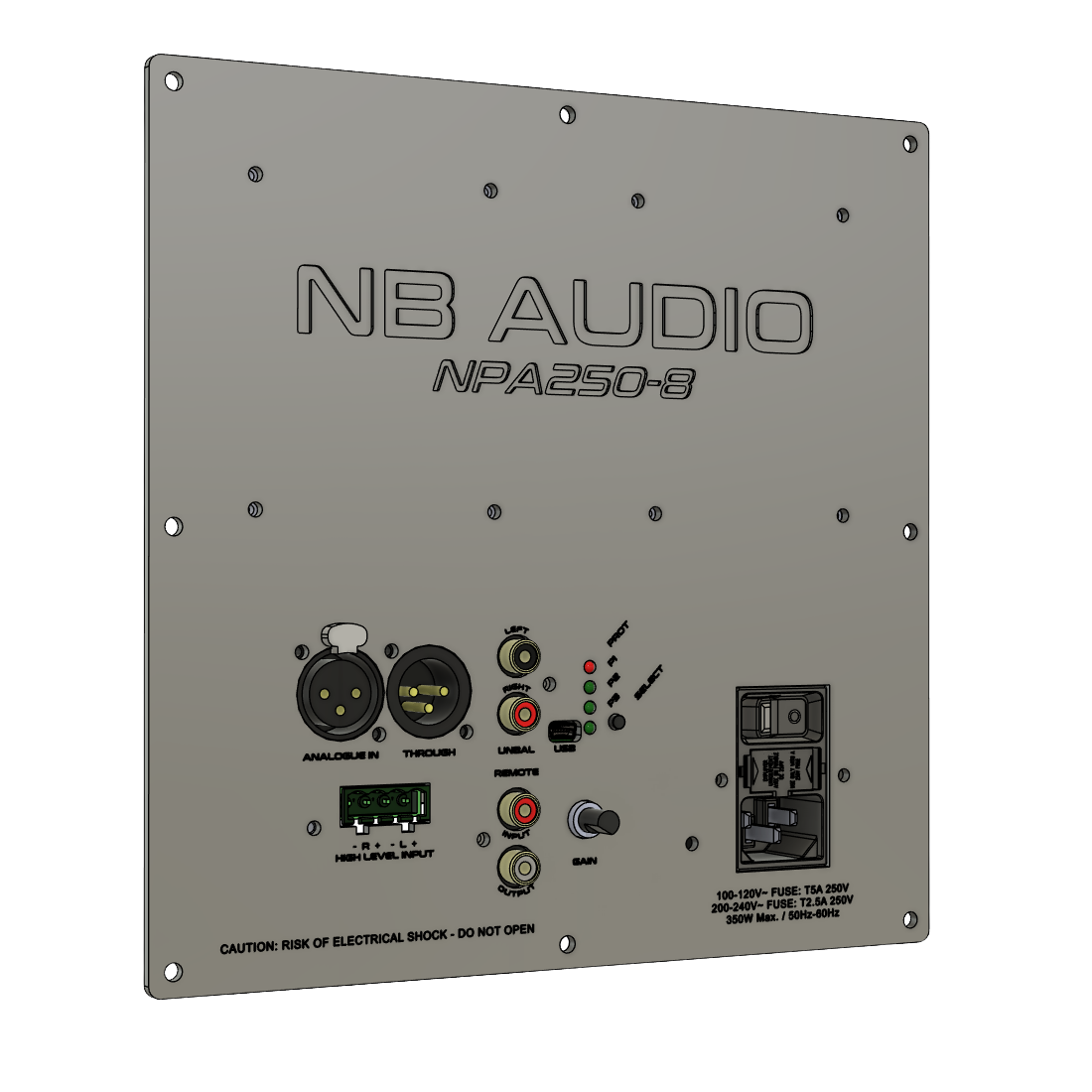

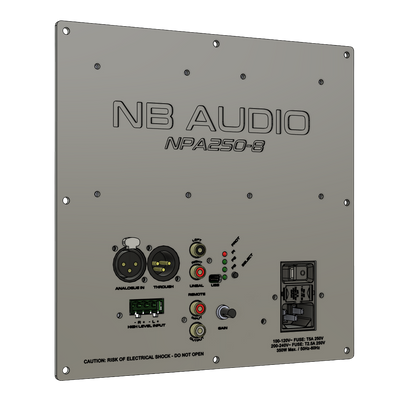

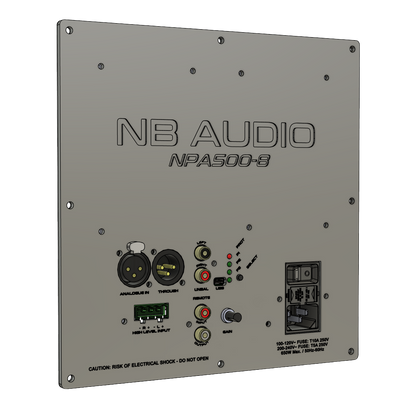

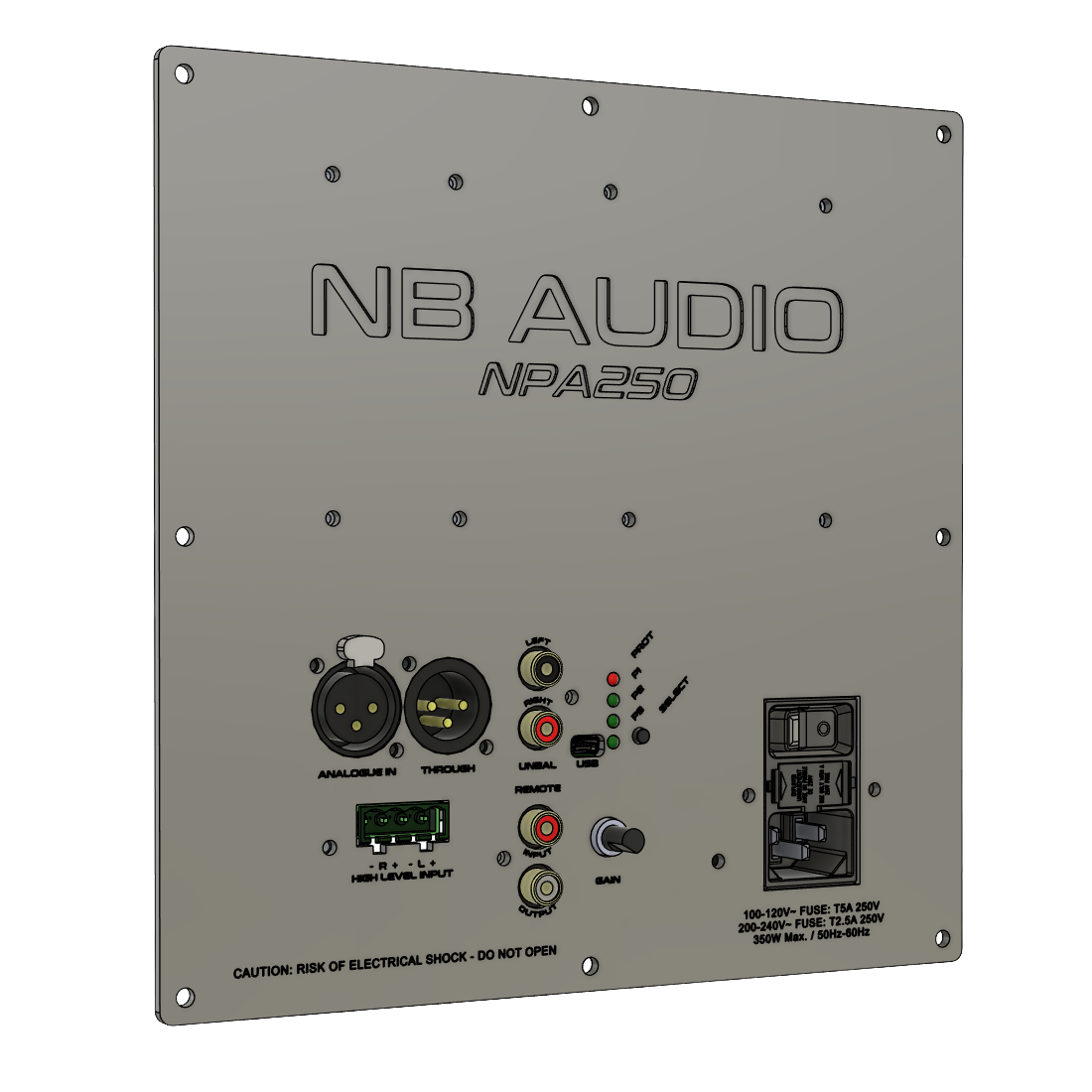

• Inputs:

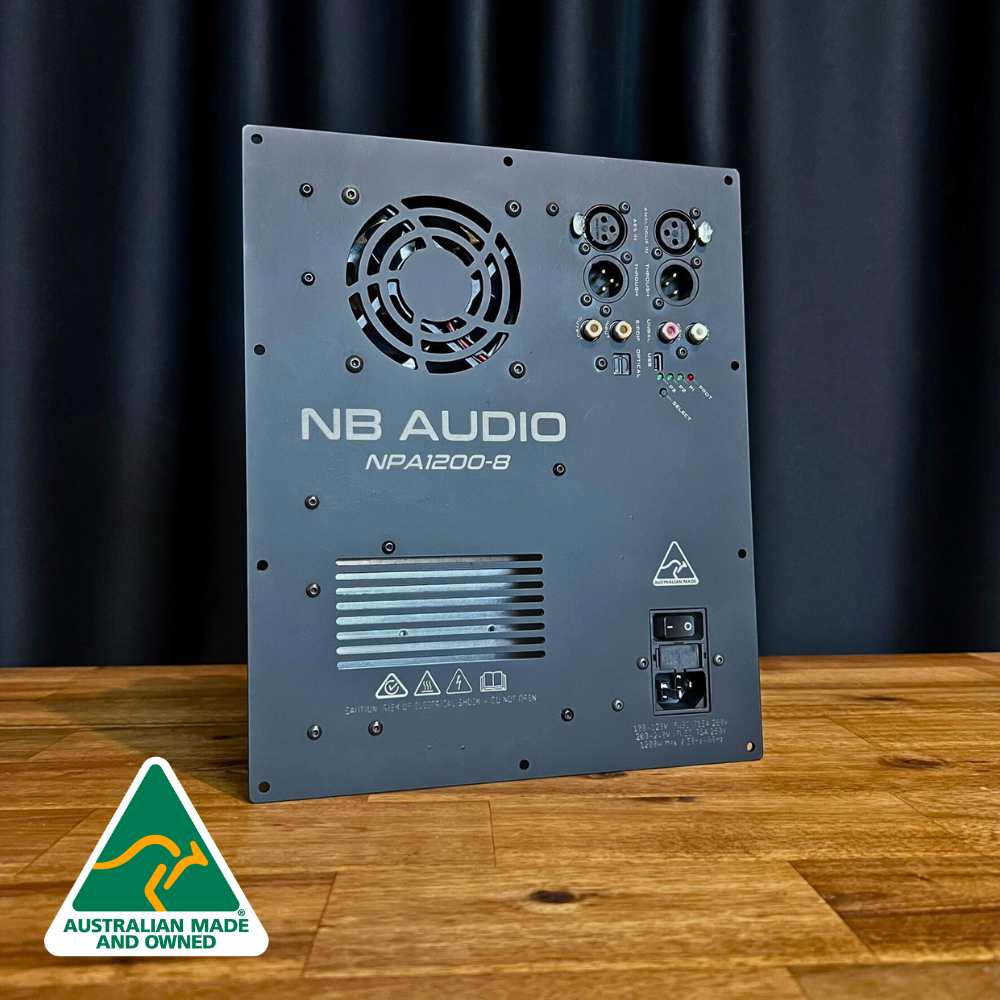

  • NPA1200-8 - AES/EBU, Optical, RCA, SPDIF, XLR

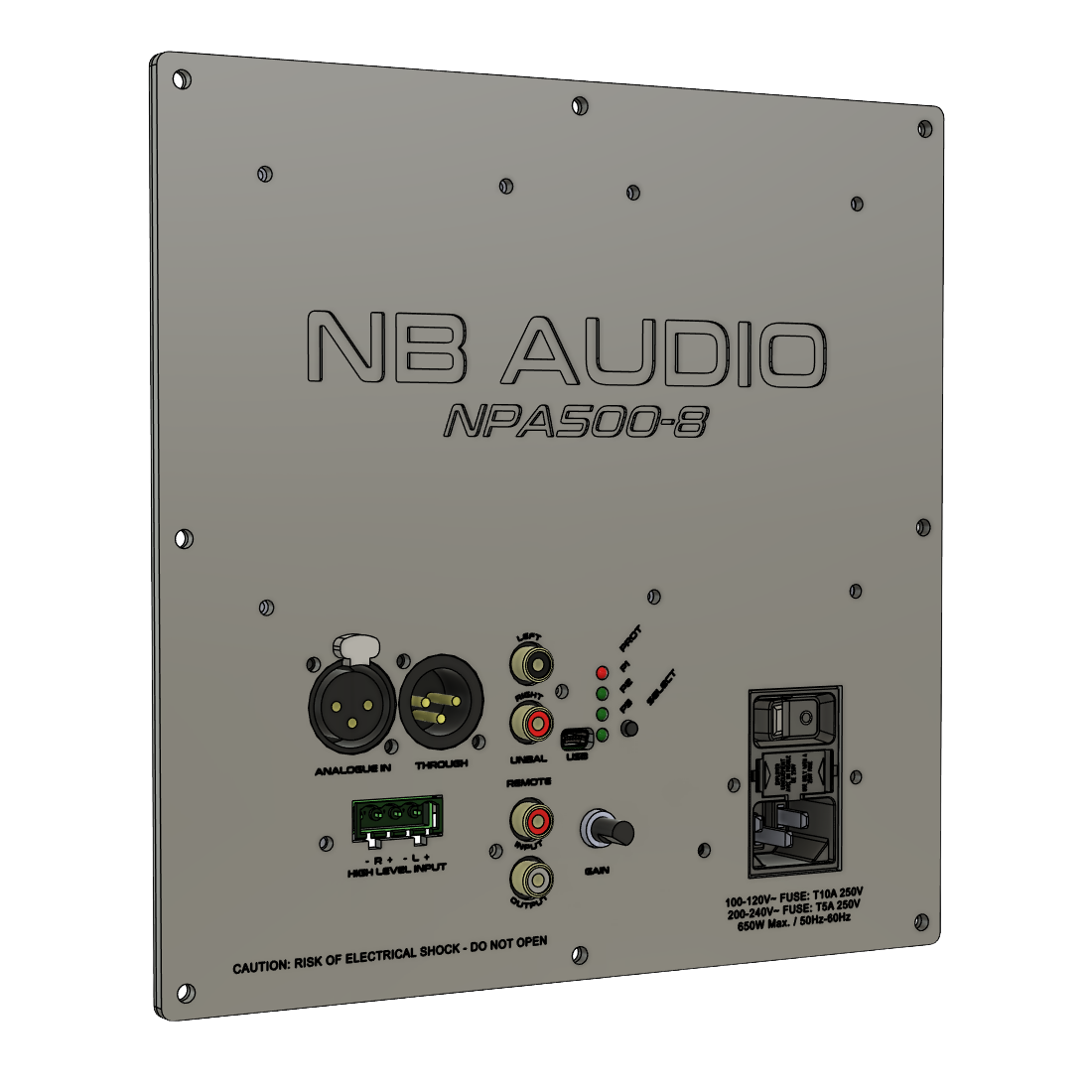

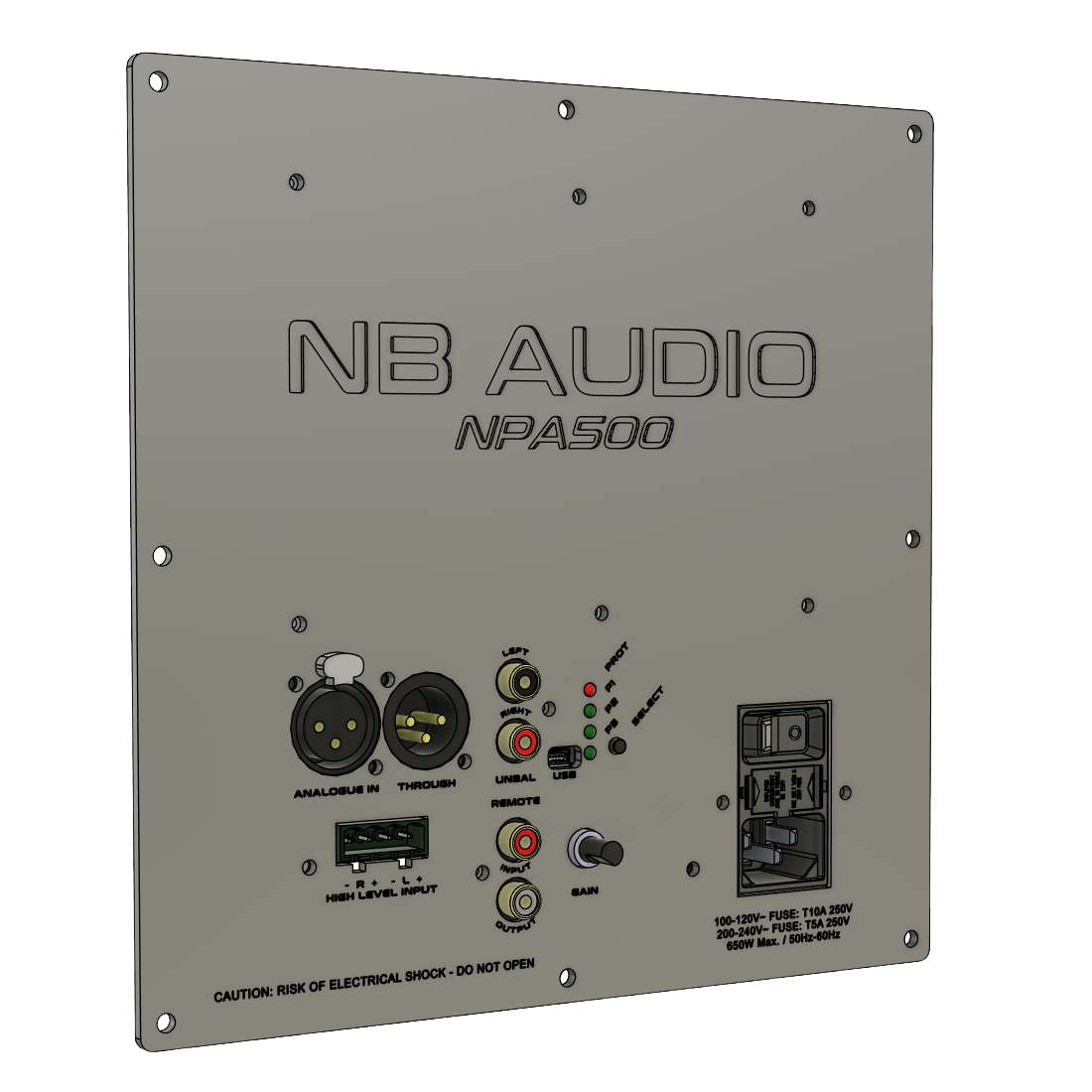

  • Remainder of the range - RCA, XLR, High Level
• Cooling:
  • NPA1200-8 - Thermal adjusting fan
  • Remainder of the range - Passive Cooling
• IIR and FIR filter options
• 15 biquads per amplifier
• Three selectable presets for filters
• Source selection
• Signal detect
• Auto shutdown
• Clip protection
• Thermal protection
• Compatible with Hypex Remote Kit & Fusion OLED Screen

Specifications:

• Power ratings from 250 - 2500w
• THD+N: 0.0010-0.0020% at 50% max power
• Signal to Noise Ratio: 109db-111db
• Frequency Response: 10Hz - 48kHz +0/-3db
• Mains Input Voltage: 100-120Vac / 200-240Vac ±10%

Package Includes:

• Plate Amplifier
• AU Power Cable
• USB Type A to Mini USB Cable
• Pre-Terminated with 100cm of speaker wire
