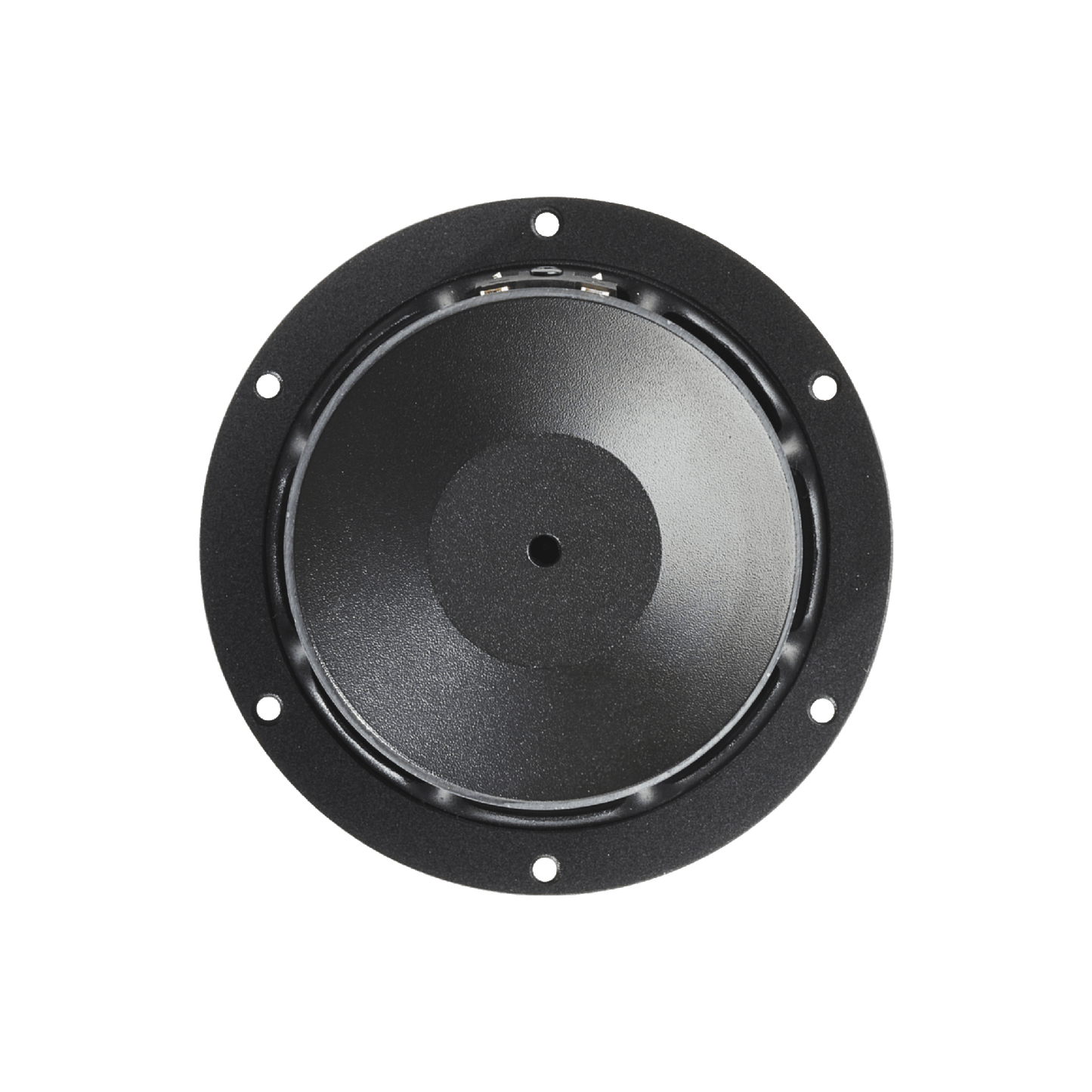

PURIFI - 4" Woofer - PTT4.0X08-NFC-01

PURIFI - 4" Woofer - PTT4.0X08-NFC-01

Regular price $699.95
Regular price Sale price $699.95
Sale Sold out
Tax included. Shipping calculated at checkout.

Made to order

Lead time: 8–12 weeks

View full details

Description

The 4” long-stroke driver incorporates the easily recognisable PURIFI NeutralSurround suspension and ultra-linear motor system PURIFI PureDrive technology working in concert to elevate performance to a whole new level despite its compact size.

Features

  • Vibroacoustic optimised cone and dust cap in proprietary paper fibre mix
  • Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
  • Low Magnetic Hysteresis Distortion (MHD)
  • "Real" long-stroke performance with distortion remaining low over full excursion
  • Uncompromised midrange performance
  • Designed and manufactured in Denmark

Specifications

General

Driver type Woofer
Nominal size 4"
Nominal impedance 8Ω
Power handling (RMS) 60 W
Power handling (program) 200 W
Sensitivity 82 dB
Sensitivity (1 W/1 m) 81.5 dB

Thiele/Small parameters

Resonant frequency (Fs) 41 Hz
DC resistance (Re) 6.4 Ω
Minimum impedance (Zmin) 7.1 Ω
Voice coil inductance (Le) 0.51 mH
Mechanical Q (Qms) 4.2
Electrical Q (Qes) 0.41
Total Q (Qts) 0.37
Equivalent volume (Vas) 5.7 L
Compliance (Cms) 1.25 mm/N
Moving mass (Mms) 11.7 g
Mechanical resistance (Rms) 0.73 kg/s
Force factor (Bl) 6.9 T·m
Effective piston area (Sd) 56.7 cm²
Linear excursion (Xmax, one-way) 8.8 mm
Mechanical excursion (Xmech) 13.7 mm
Displacement volume (Vd) 49.9 cm³
Efficiency bandwidth product (EBP) 100
Effective piston diameter (D) 85 mm
Impedance at resonance (Zo) 72 Ω
Frequency of minimum impedance 268 Hz

Motor

Motor efficiency factor (β) 7.4 (T·m)²/Ω
Voice coil height 21.6 mm
Voice coil layers 4
Voice coil wire Alu
Air gap height 4 mm
Magnet diameter 90 mm

Mounting

Overall diameter 125.3 mm
Cutout diameter 101 mm
Mounting depth 74.5 mm
Flange thickness 3.6 mm
Bolt circle diameter 115 mm
Mounting holes 6
Mounting hole diameter 4.2 mm
Volume displaced by driver 0.23 L
Voice coil diameter 30 mm
Weight 1.25 kg

Materials

Cone Proprietary Fibre Mix

Typical box tunings

Sealed B2: corner frequency 78.3 Hz
Sealed B2: box volume 2.1 L
Bass reflex: corner frequency 38.4 Hz
Bass reflex: box resonance 42.2 Hz
Bass reflex: box volume 6 L
Bass reflex: port diameter 41 mm
Bass reflex: port length 370 mm
2 × passive radiator: corner frequency 45 Hz
2 × passive radiator: box volume 4.7 L
2 × passive radiator: PR mass (each) 30.4 g
  • Xmax is quoted one-way (peak), not peak-to-peak.
  • Sensitivity measured at 2.83V/1m.
  • Purifi quotes sensitivity over 300–800 Hz.
