SB Acoustics - 3" PGC Full Range - SB10PGC21-4

SB Acoustics - 3" PGC Full Range - SB10PGC21-4

Regular price $26.95
Regular price Sale price $26.95
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.

View full details

Description

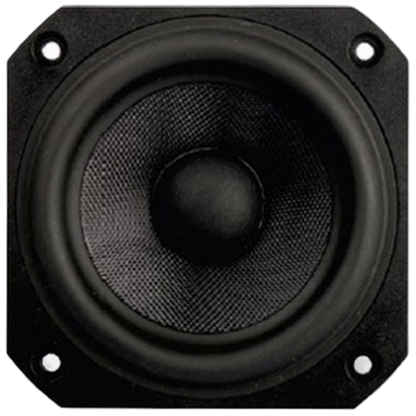

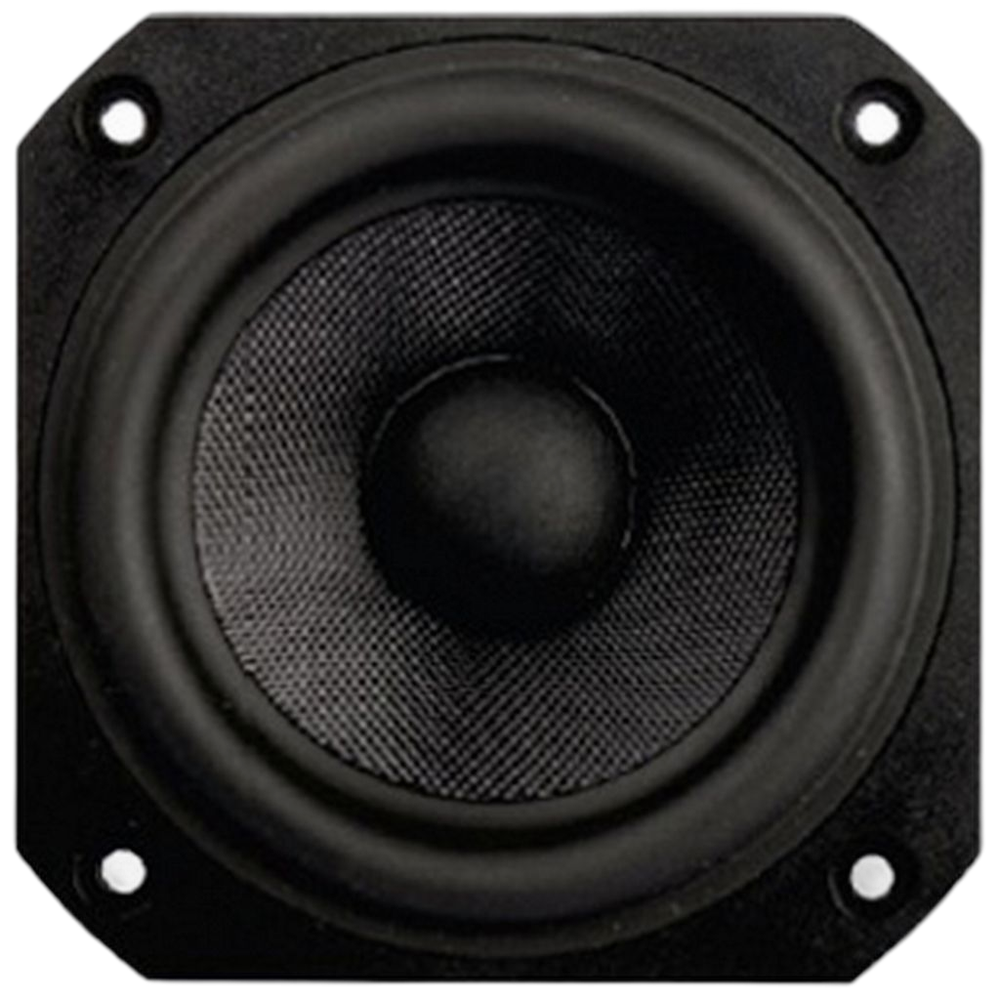

SB Acoustics SB10PGC21-4 3" Full Range Acoustic Speaker features a low damping surround, non-conductive voice coil, vented voice coil, optimised fibre glass cone, compact square chassis for versatile integration.

Features

  • Low damping surround and non-conductive voice coil former to ensure good dynamics and transparent sound character with fine detail.

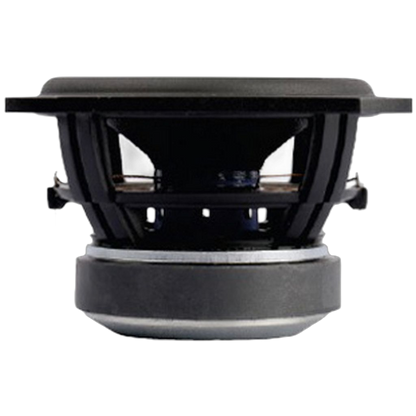

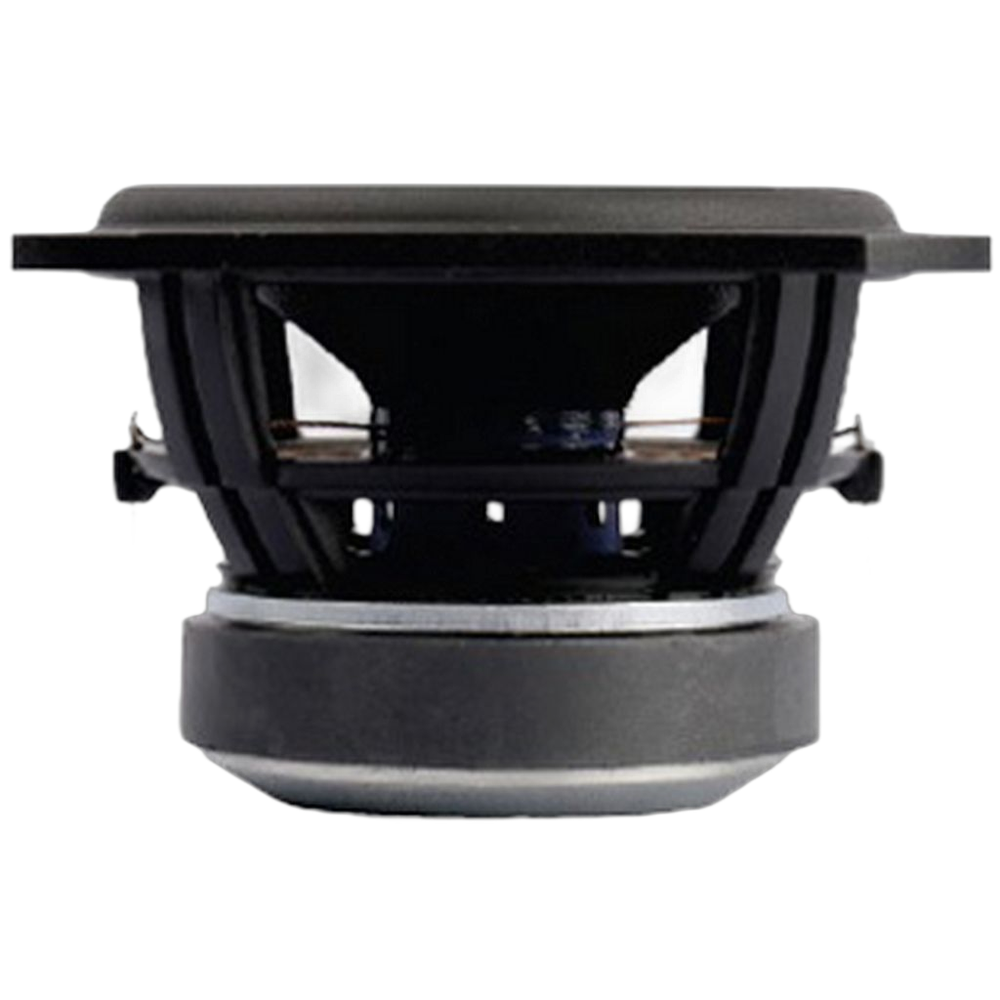

  • Vented voice coil for heat exchange and reduced compression.
  • Light weight CCAW voice coil.
  • Optimised fibreglass cone for smooth response.

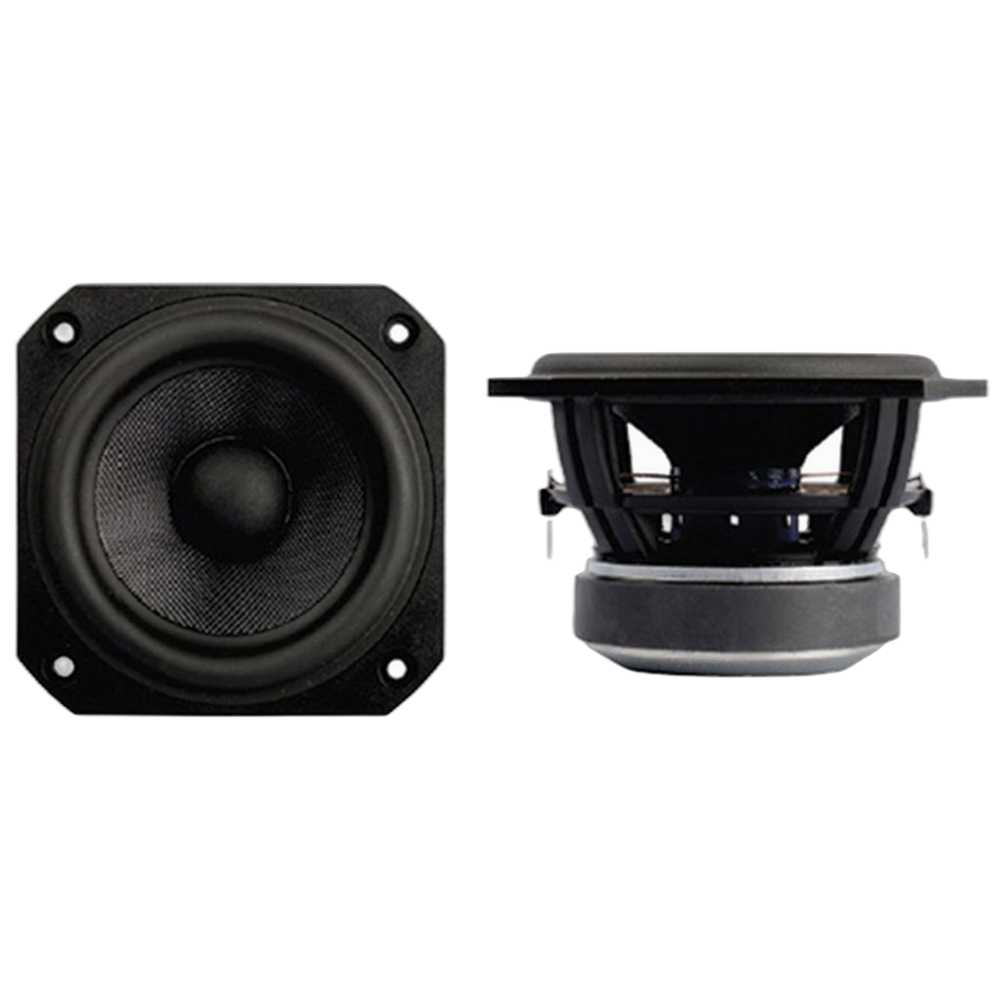

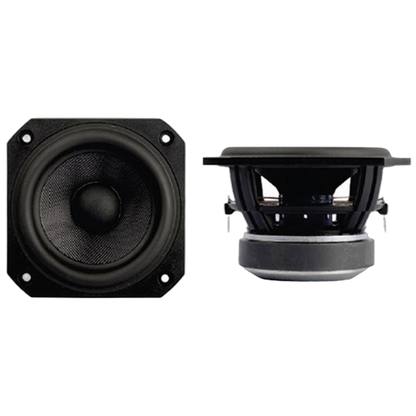

  • Compact square chassis for versatile integration.

Specifications

General

Driver type Full Range
Nominal size 3"
Nominal impedance 4Ω
Power handling (RMS) 20 W
Sensitivity 84 dB

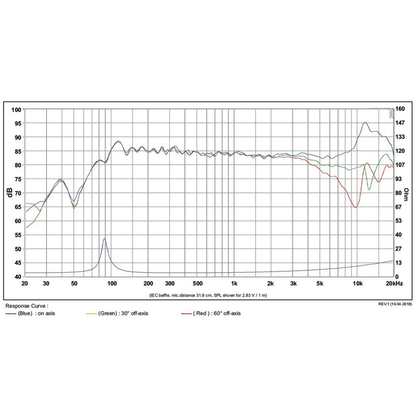

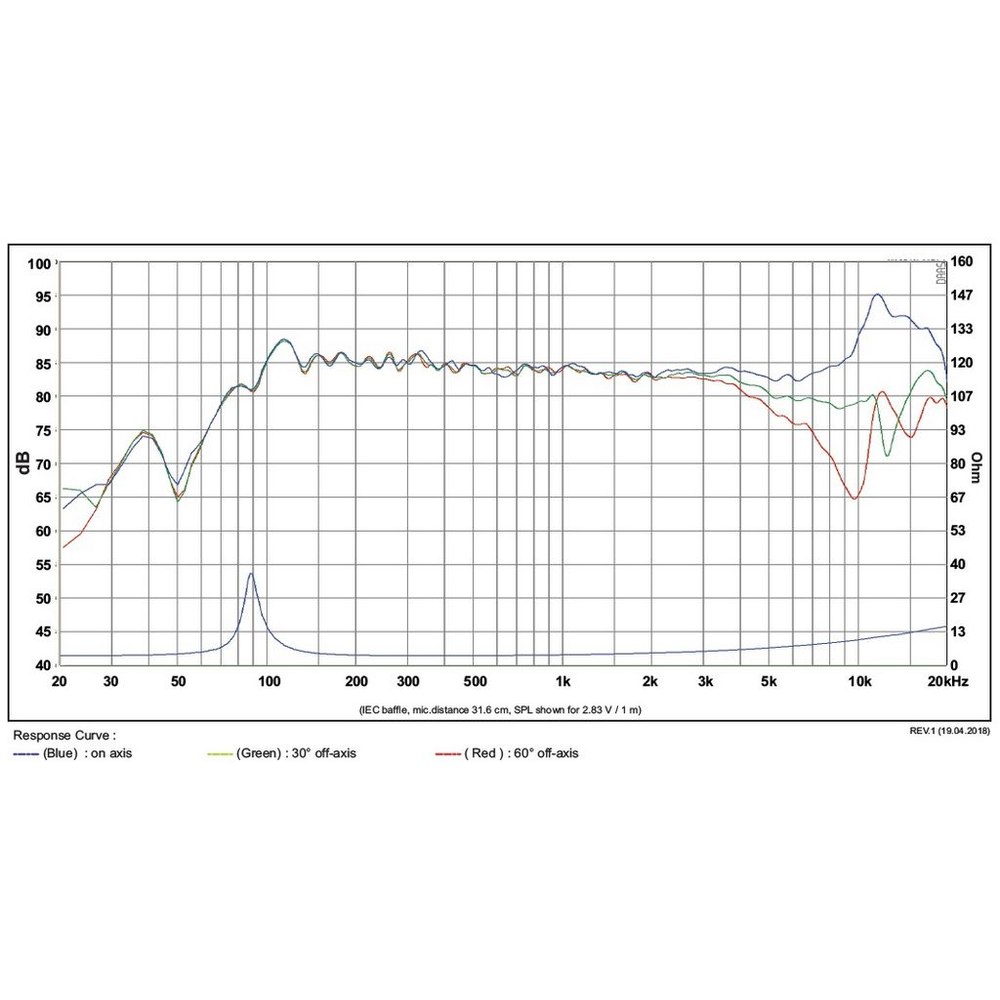

Frequency range 90 – 20,000 Hz
Suggested alignment Either

Thiele/Small parameters

Resonant frequency (Fs) 89 Hz
DC resistance (Re) 3.4 Ω
Voice coil inductance (Le) 0.15 mH
Mechanical Q (Qms) 11.2
Electrical Q (Qes) 1.01
Total Q (Qts) 0.92
Equivalent volume (Vas) 1.2 L
Compliance (Cms) 1.14 mm/N
Moving mass (Mms) 2.8 g
Mechanical resistance (Rms) 0.14 kg/s
Force factor (Bl) 2.3 T·m
Effective piston area (Sd) 27 cm²
Linear excursion (Xmax, one-way) 2.25 mm
Displacement volume (Vd) 6.075 cm³
Efficiency bandwidth product (EBP) 88.12

Motor

Voice coil height 7.5 mm
Air gap height 3 mm
Magnetic flux density 0.8 T
Magnet weight 0.09 kg

Mounting

Overall diameter 95.5 mm
Faceplate Not round (see the maker's drawing)
Cutout diameter (suggested) ≈ 74.6 mm
Mounting depth 44.2 mm
Voice coil diameter 20.4 mm
Weight 0.24 kg
Width 77.4 mm

Materials

Cone Fibreglass
  • Xmax is quoted one-way (peak), not peak-to-peak.
  • Sensitivity measured at 2.83V/1m.

Downloads

  • 3″ SB10PGC21-4 Datasheet PDF, 555 KB

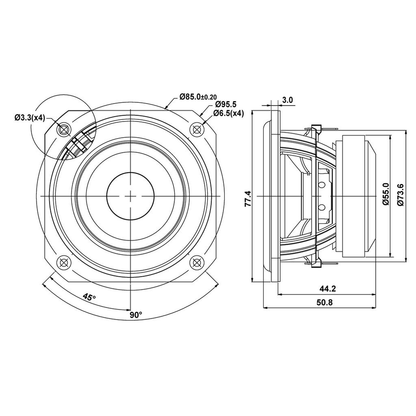

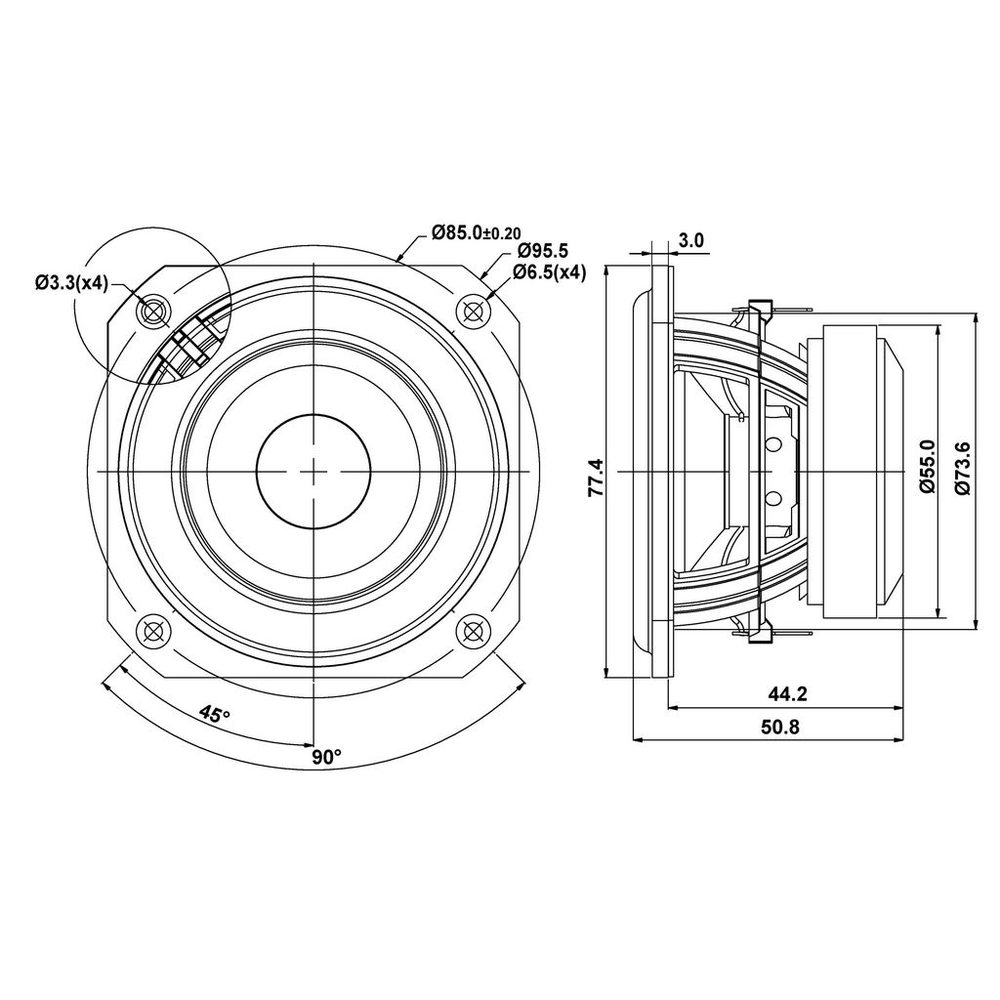

  • SB10PGC21-4 Cutout & Recess Template (NB Audio) NB Audio CAD: DXF, PDF, SVG in a ZIP, 57 KBStraight off SB Acoustics' spec sheet: flange outline, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.

Some figures here aren't checked against SB Acoustics' datasheet yet. See which

  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
M
MICAH H KURCZOK

Very accurate sound, very nice used as a midrange for 3 way speakers.
Reproduction of vocals is on point
