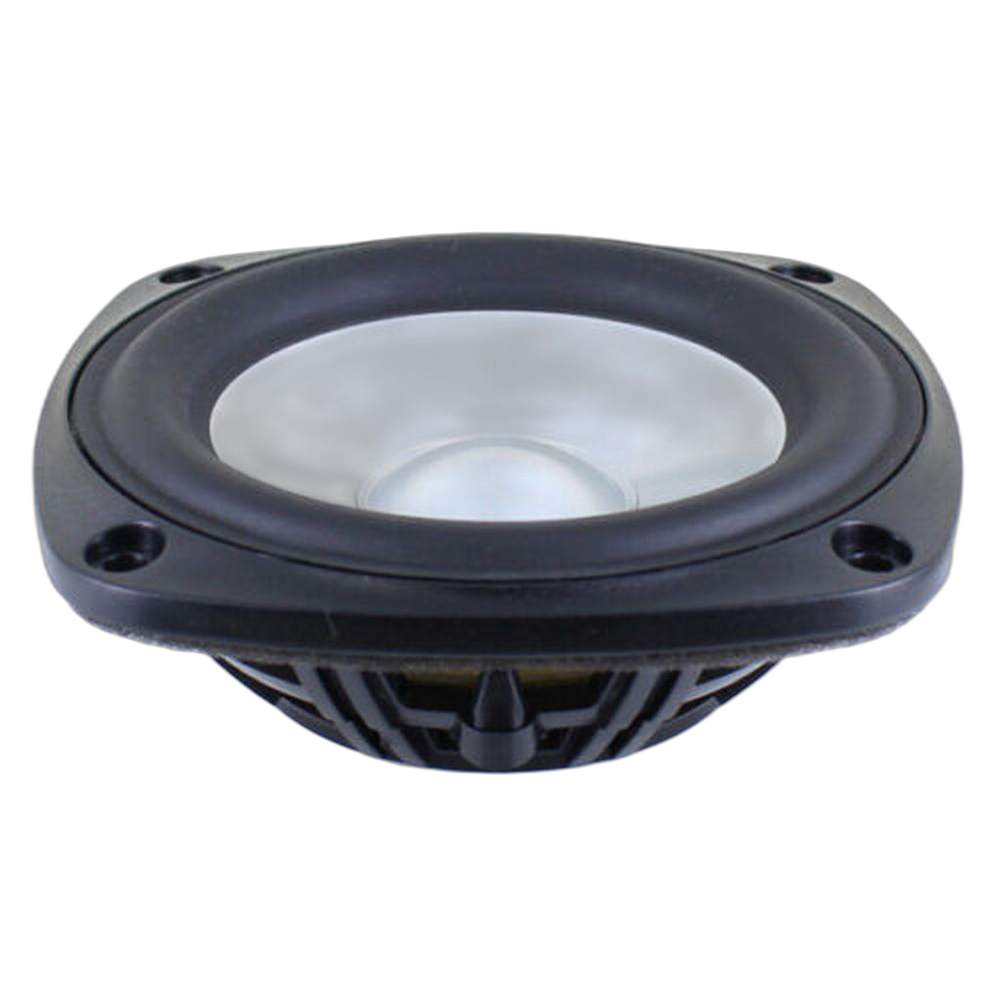

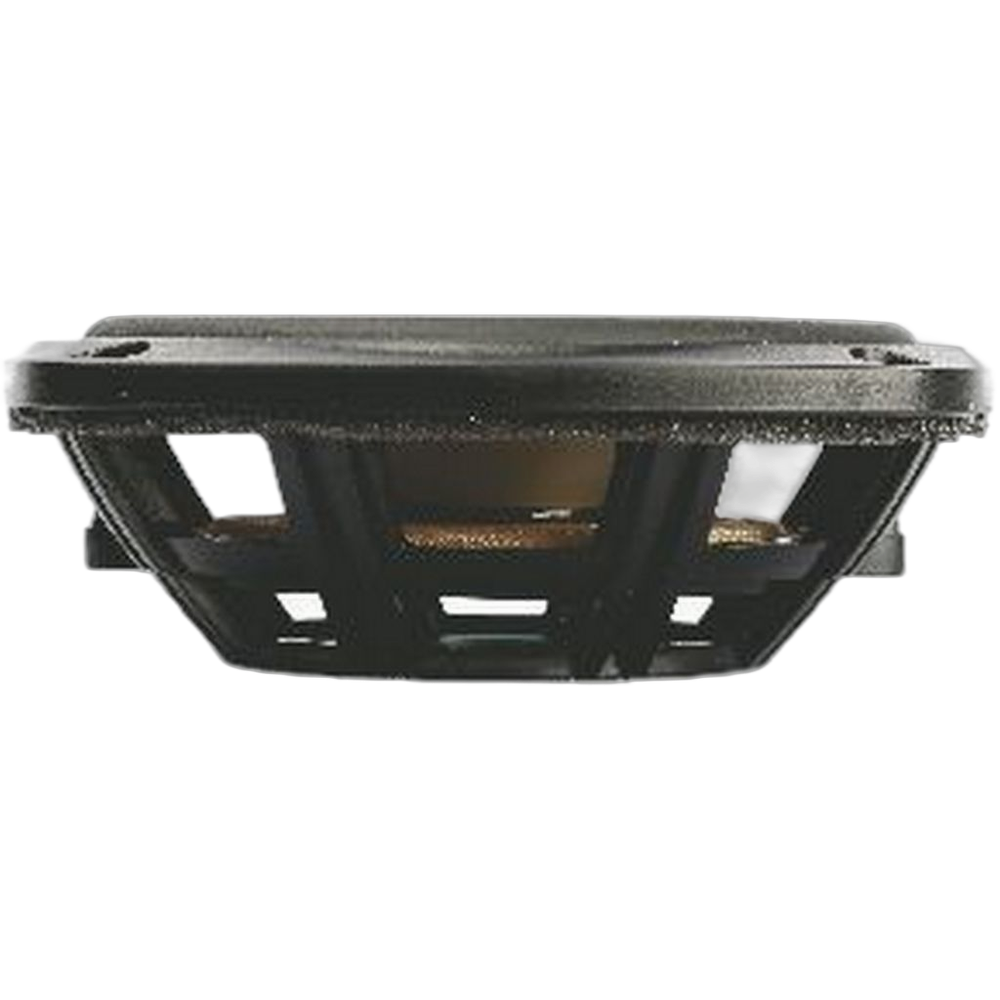

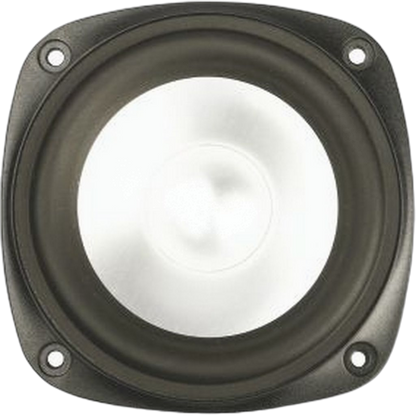

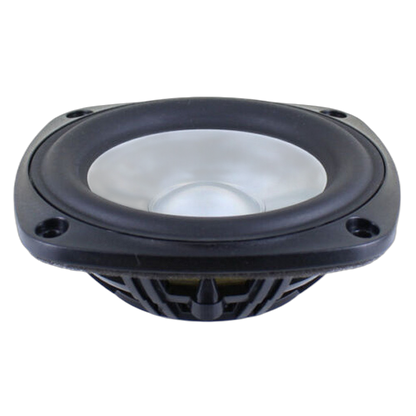

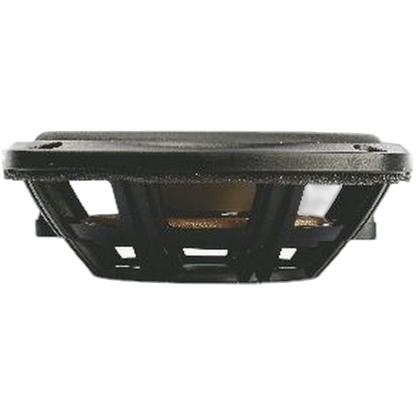

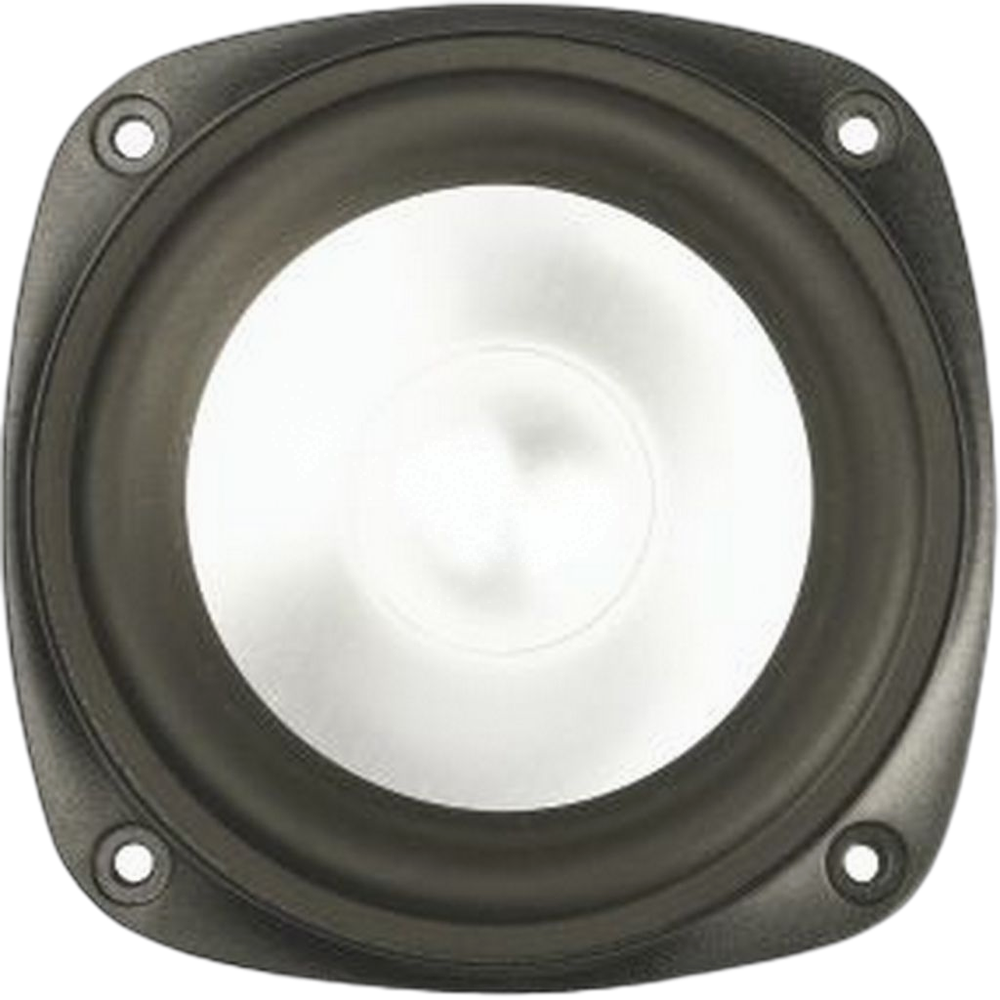

SB Acoustics - 4" PAC Passive Radiator - SB12PAC25-00
SB Acoustics - 4" PAC Passive Radiator - SB12PAC25-00
Regular price
$31.95
Regular price
Sale price
$31.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features
- Vented reinforced plastic chassis
- Anodised aluminium cone
- Low damping rubber surround
- Long stroke linear suspension
- Easily adjustable moving mass
Specifications
Specifications
General
| Driver type | Passive Radiator |
|---|---|
| Nominal size | 4" |
Thiele/Small parameters
| Resonant frequency (Fs) | 33 Hz |
|---|---|
| Mechanical Q (Qms) | 12.4 |
| Equivalent volume (Vas) | 4.3 L |
| Compliance (Cms) | 1.21 mm/N |
| Moving mass (Mms) | 19.2 g |
| Mechanical resistance (Rms) | 0.32 kg/s |
| Effective piston area (Sd) | 50 cm² |
| Mechanical excursion (Xmech) | 9 mm |
Mounting
| Overall diameter | 125 mm |
|---|---|

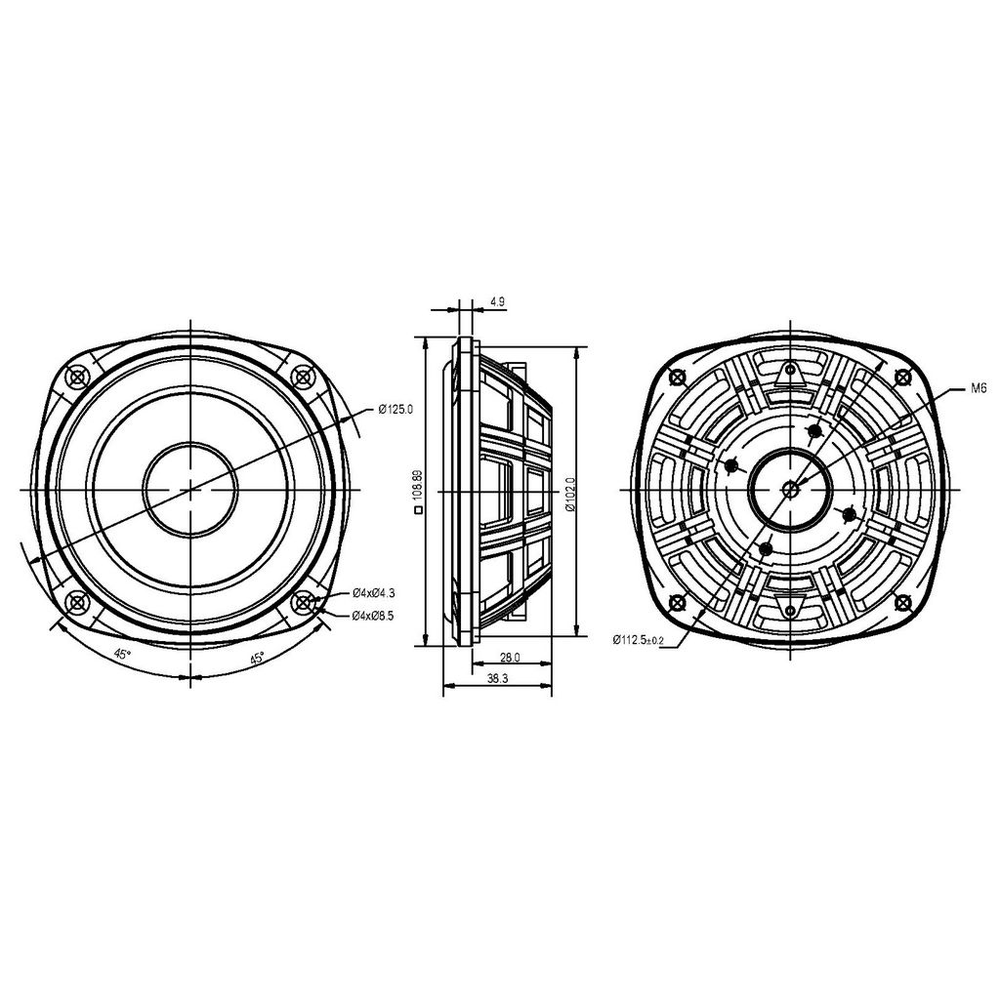

| Faceplate | Not round, 108.9 Ă— 108.9 mm (see the maker's drawing) |
| Cutout diameter (suggested) | ≈ 103.0 mm |
| Mounting depth | 28 mm |
| Weight | 0.078 kg |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
| Basket | Reinforced Plastic |
Downloads
- SB12PAC25-00 4″ SB12PAC-00 Datasheet
- SB12PAC25-00 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
