Short answer: find the actual fault first. A crumbling foam surround can be refoamed. Old electrolytic capacitors can be replaced with new parts of the same value. A blown driver is best replaced with the identical model. Swapping in a different driver is where most repairs go wrong, because the crossover was designed around the original. And if the speaker was cheap to begin with, the honest answer is often to retire it.
Step 1: work out what's actually wrong
Before buying anything, narrow it down.
| Symptom | Likely cause | Quick check |
|---|---|---|
| No treble at all | Blown tweeter, or a failed crossover part in the tweeter circuit | Multimeter on the tweeter terminals (disconnected): open circuit means a broken voice coil |
| No sound from the woofer | Broken voice coil, broken lead-out wire, bad connection | Multimeter across the woofer: should read near its DC resistance (often 3 to 7 ohms) |
| Scratchy or rubbing sound on bass | Voice coil rubbing (dropped cone, deformed coil, sagging spider) | Gently press the cone in evenly with your fingers: feel or hear scraping? |
| Surround crumbling or split | Foam rot (age) | Look at it. Foam surrounds from the 70s to 90s often perish. |
| Dull, lifeless sound that's crept up over years | Drifted or dried-out electrolytic caps in the crossover | Hard to tell by ear; measuring the caps out of circuit tells you |
| Buzz at certain notes | Loose part, loose screw, debris in the gap, air leak | Play a slow sine sweep and hunt it down |
| One side quieter than the other | Crossover fault, damaged driver, or just the amp/cable | Swap the speakers left and right: does the problem move? |
A cheap multimeter is your best friend here.

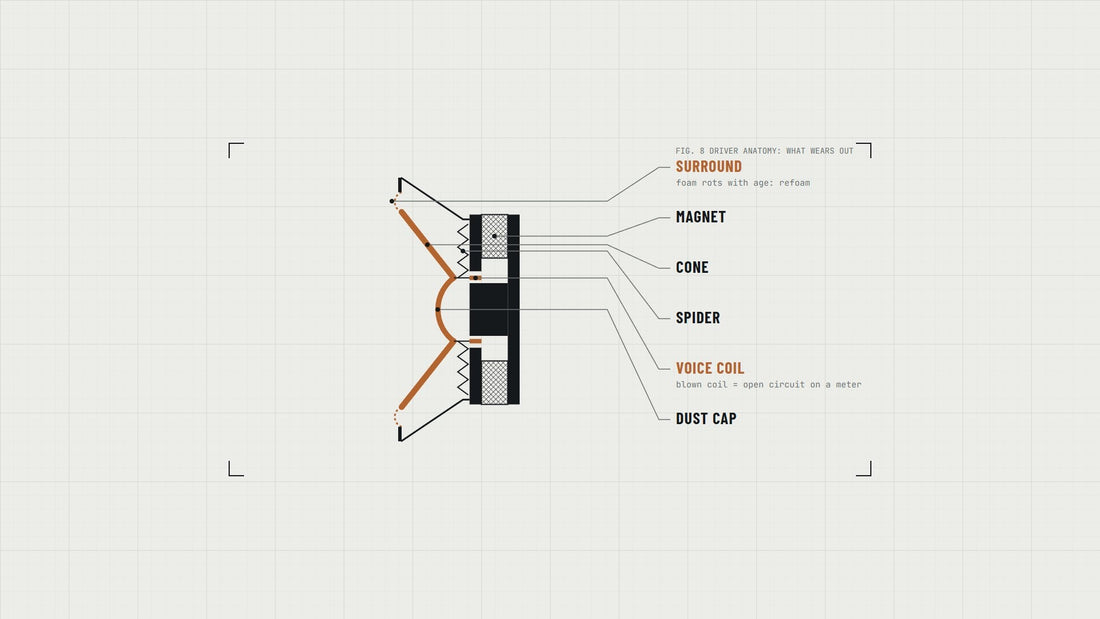

Refoaming: often worth it
Foam surrounds perish with age. Replacing them is a well-trodden repair, and on a decent older woofer it's usually worth doing.
What's involved: clean off the old foam and glue from the cone and frame, glue on a new surround of the right size and type, and re-centre the voice coil while the glue sets. Centring is the fiddly bit: shims in the voice-coil gap (with the dust cap off) or a low-frequency tone to let it settle are the common methods.
Tips: - Measure the old surround carefully (outer diameter, inner diameter, roll width and height) or match by the driver's model. - Do both speakers at the same time so they stay matched. - If you can, check the T/S parameters afterwards (Fs especially) to see if they're close to the original. An impedance tester like the Dayton Audio DATS V3 makes this easy.
When it's not worth it: when the speaker's value is less than the surround kit plus your time, or the cone itself is damaged.
Recapping: sensible on older speakers
Electrolytic capacitors in old crossovers dry out and drift in value over decades. Replacing them is a reasonable repair on speakers that are 20+ years old.
The rule: same value, same place, same circuit. - Replace each capacitor with one of the same capacitance and an equal or higher voltage rating. - Use a bipolar electrolytic or a film capacitor of the same value. Film caps last longer, but they're bigger, so check they'll fit. In series with a tweeter, a film cap can sound slightly brighter than a tired electrolytic, because it has lower internal resistance (ESR). - Don't change the values or the circuit. That's redesigning the crossover, not repairing it. - Take a photo of the board before you touch it, and swap one part at a time.
Set your expectations: recapping fixes caps that have drifted. It won't turn an average speaker into a great one. Replacing healthy parts with expensive boutique ones changes much less than the forums suggest.
Inductors and resistors rarely fail. Check resistors for burn marks and inductors for broken wires, but they usually just need resoldering.
Driver swaps: the trap
This is the one we get asked about most. You've blown a tweeter or a woofer, the original isn't made any more, and there's a driver that "looks the same" with similar specs.
The problem is the crossover. In a multi-way speaker, the crossover was designed around the exact impedance, sensitivity and frequency response of the original drivers. A different driver, even one with similar headline specs, will:
- be louder or quieter (sensitivity), throwing the balance between woofer and tweeter;
- present a different impedance, which moves the crossover point and changes the slope;
- have a different frequency response, especially at the edges where the crossover hands over.
We wrote a whole guide on this: Why You Can't Just Swap Out Drivers in a Multi-Way Loudspeaker.
What to do instead, in order: 1. Identical replacement from the manufacturer (or their service agent). 2. Identical used driver from Marketplace, eBay or a parts speaker. 3. Recone or repair service for the original driver, especially woofers. 4. A different driver plus a redesigned crossover. Doable, but it means measuring both drivers in the box and redesigning the crossover around them. At that point it's a DIY design project wearing an old cabinet. See Passive crossovers explained and Measuring speakers on a budget.
The one exception: a single full-range driver in a box with no crossover is much more forgiving. Match the size, impedance and rough T/S parameters and you'll usually be fine.
"Upgrading" a commercial speaker
People ask about upgrading as well as repairing. Honest answers:
- Better crossover parts: small changes, at best, unless the originals are faulty or drifted.
- Bracing and damping: can help in a thin, rattly cabinet. Add damping carefully in ported speakers so you don't block the port.
- Better drivers: see above. New drivers mean a new crossover.
- Better terminals or internal wire: convenience, not sound.
If you want a genuinely different speaker, building one is often the more direct route. The cabinet is often the only part of an old speaker worth keeping, and even then the crossover needs redoing to suit new drivers.
When to walk away
- The speaker cost less than the repair parts.
- The drivers are proprietary, unobtainable and blown.
- Fixing it would mean redesigning the crossover and you don't want a design project.
When to persist: classic speakers with good bones, speakers with sentimental value, or pairs where the drivers are still made.
Quick questions
Can I replace a 4-ohm driver with an 8-ohm one? Not without changing the crossover. The impedance is part of the filter. You'll also change the level.
My tweeter's blown. Can I use any tweeter of the same size? Size is the least important match. Sensitivity, impedance, resonance and response all matter, and the crossover was tuned for the original.
Should I replace electrolytic caps with film caps? You can, at the same value. It's a durability upgrade more than a sound one.
Is refoaming hard? It's fiddly rather than hard. Patience with centring the voice coil is the main skill.
