SB Acoustics' Eka was its first kit: a two-way with a 6" paper-cone mid-woofer and a soft dome tweeter. SB has since discontinued it, but the plans are still published and the drivers are still made.

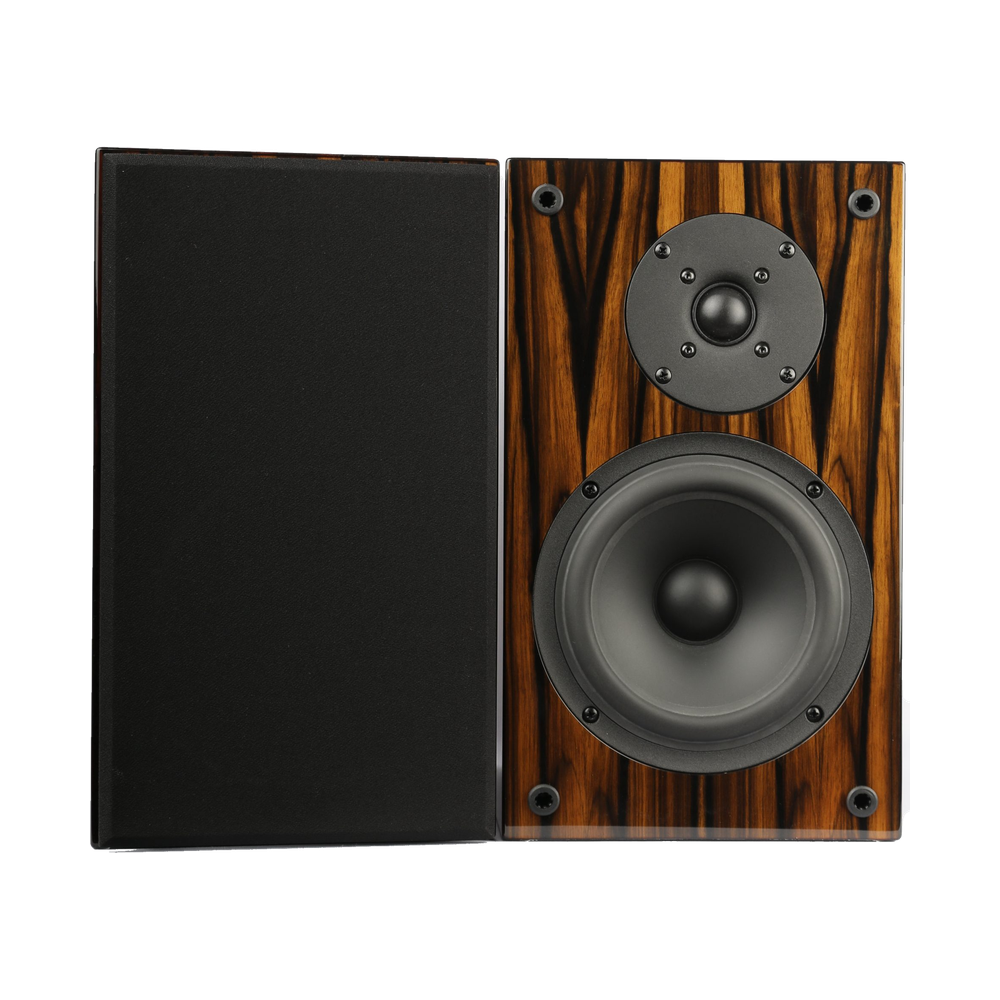

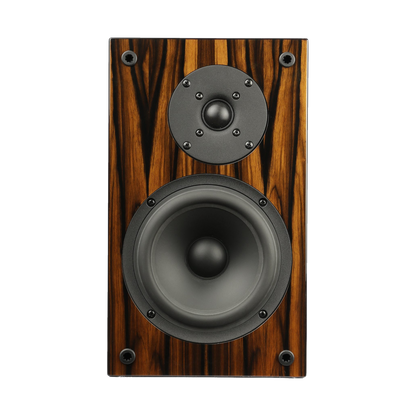

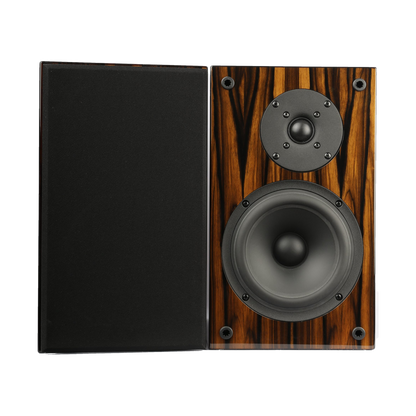

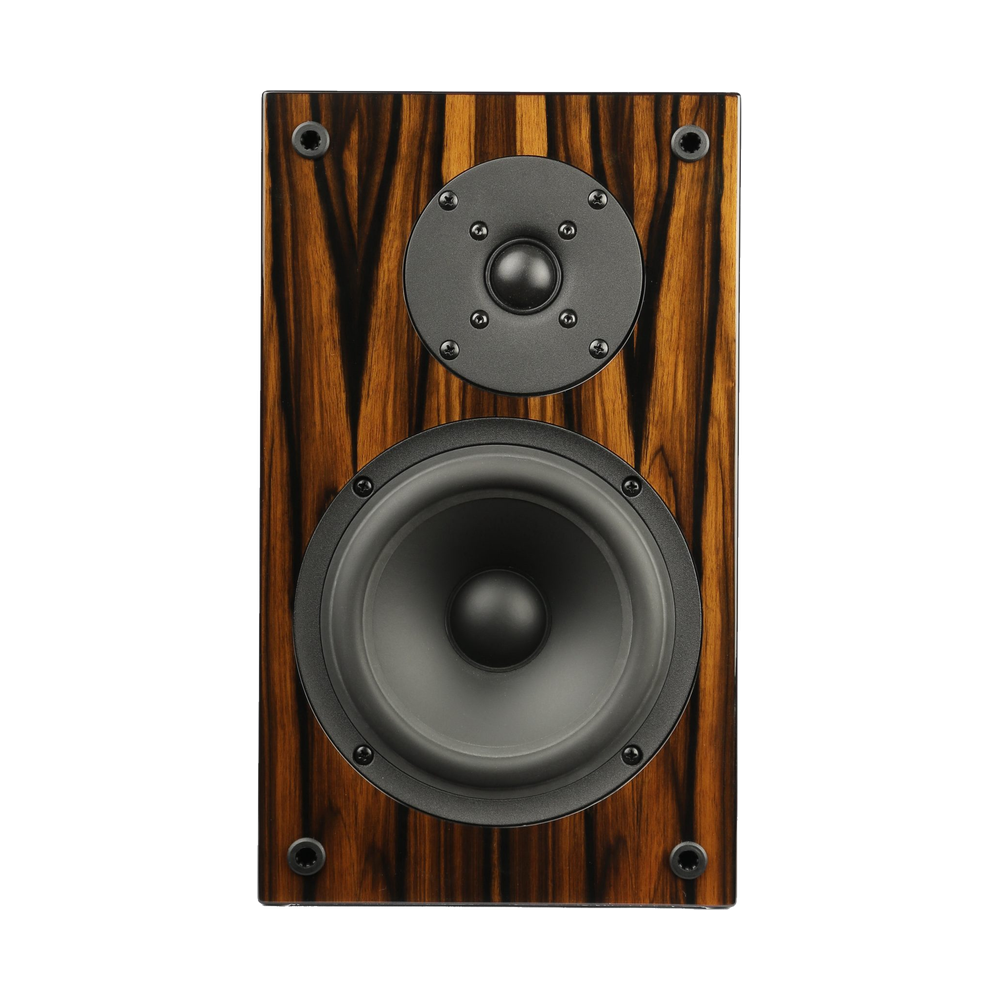

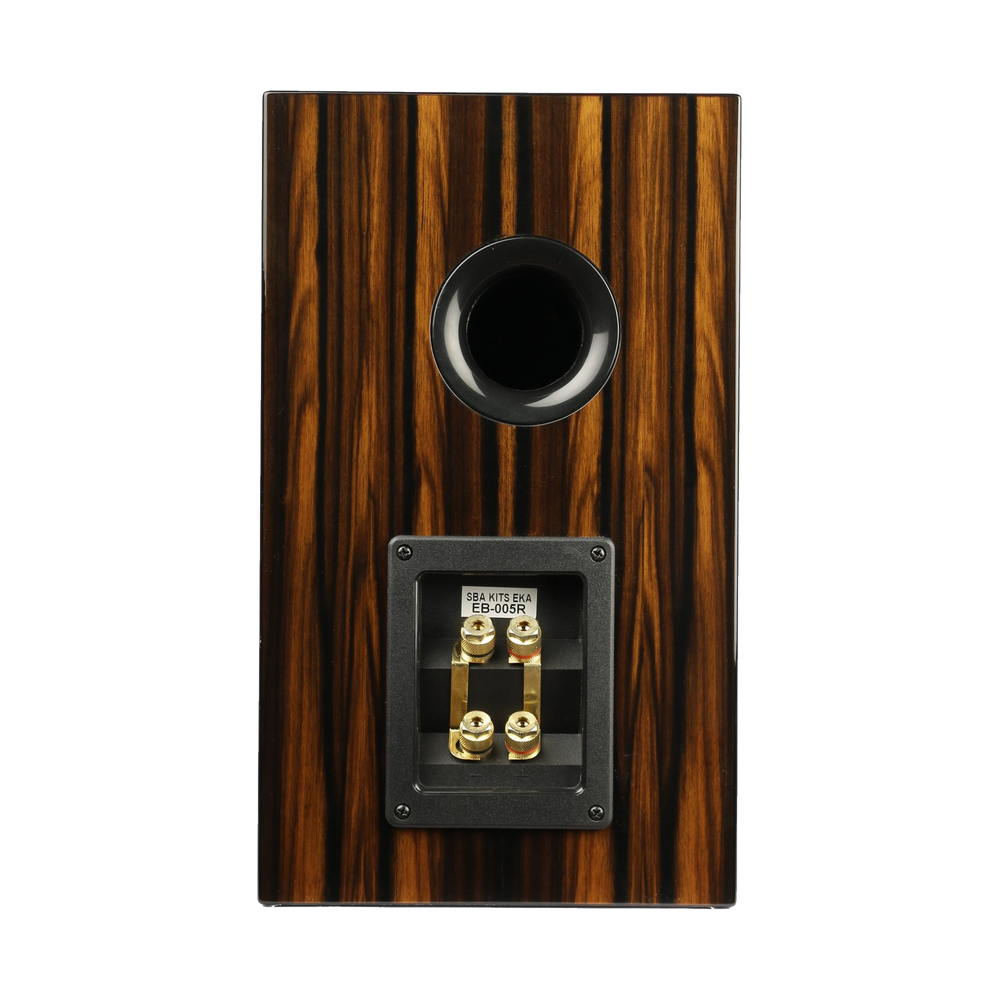

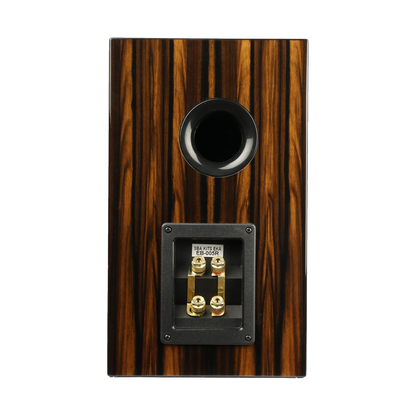

The photos are SB Acoustics' own finished build. We sell the drivers; the cabinet is yours to build.

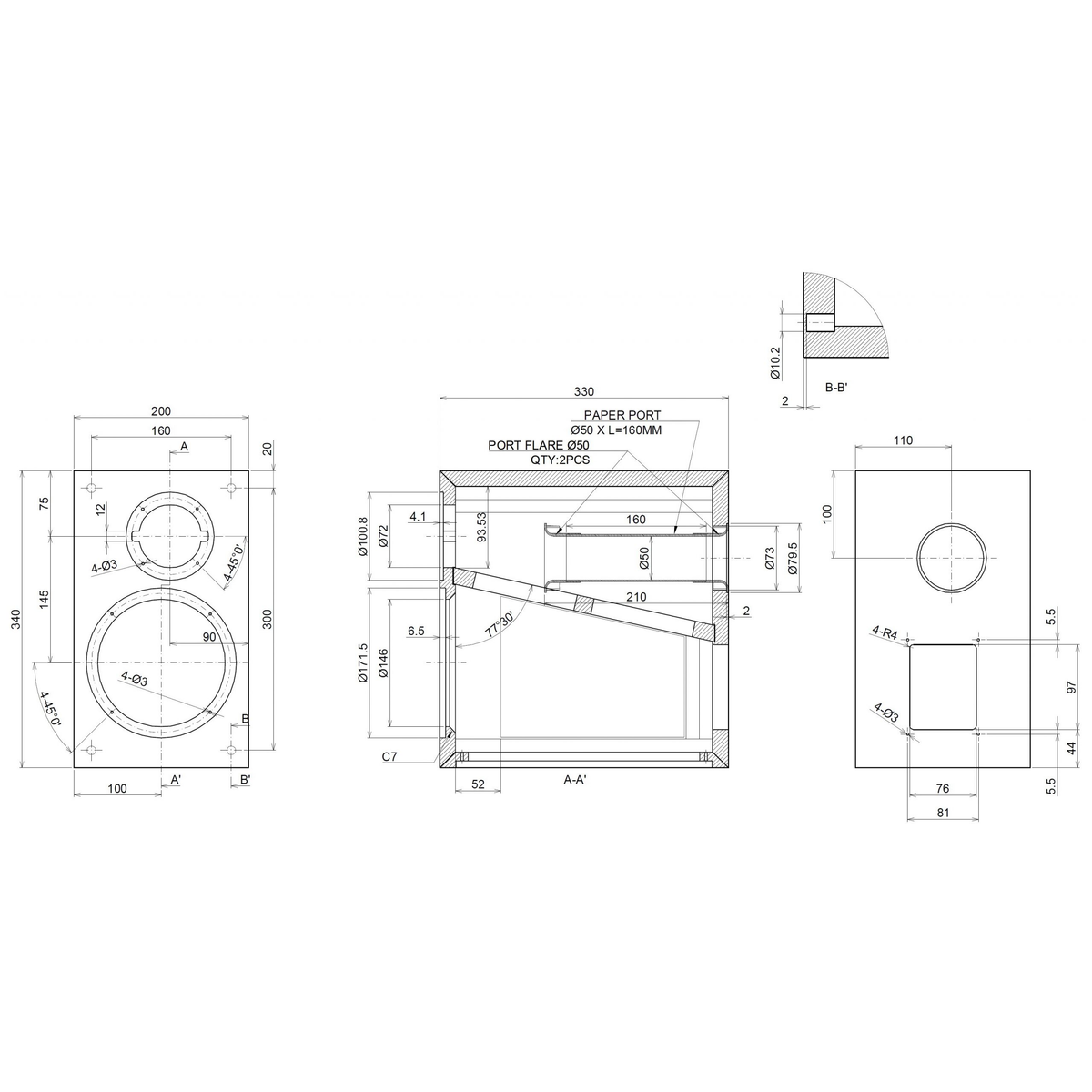

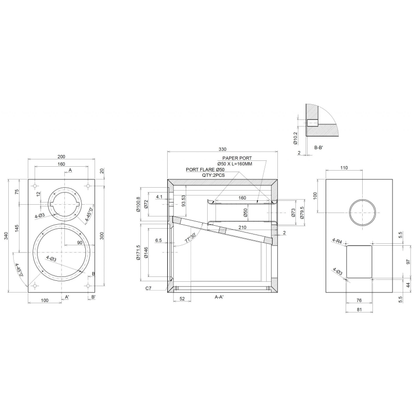

There's no ready-made crossover for this one. SB publishes the schematic, so you can build it yourself from our crossover parts. Wagner doesn't sell a cabinet for it either: SB's drawing has the dimensions to build your own.
Everything in the kit
Everything below is for a pair of speakers. Each part links to its own page, so you can also buy it a piece at a time.
49-25000 Hz Sensitivity ( 2.83V/1m ) 66.5 dB Nominal impedance 4Ω Max SPL 105 dB Recommended amplifier 40 – 150 W Cross-over frequency 3100 Hz Enclosure type Bass reflex Port tuning frequency 37 Hz Drive Units Soft Dome SB26STAC-C000-4 & 6″ SB17NRXC35-4 Cabinet Material 18mm MDF Speaker Dimension (HxWxD) 340 x 330 x 200 mm
