SB Acoustics - Ara Speaker Kit
SB Acoustics - Ara Speaker Kit
Loading the kit's parts and prices…
Description

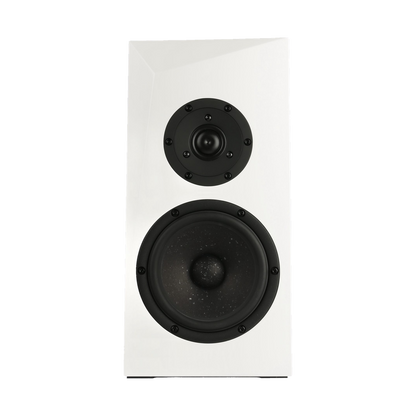

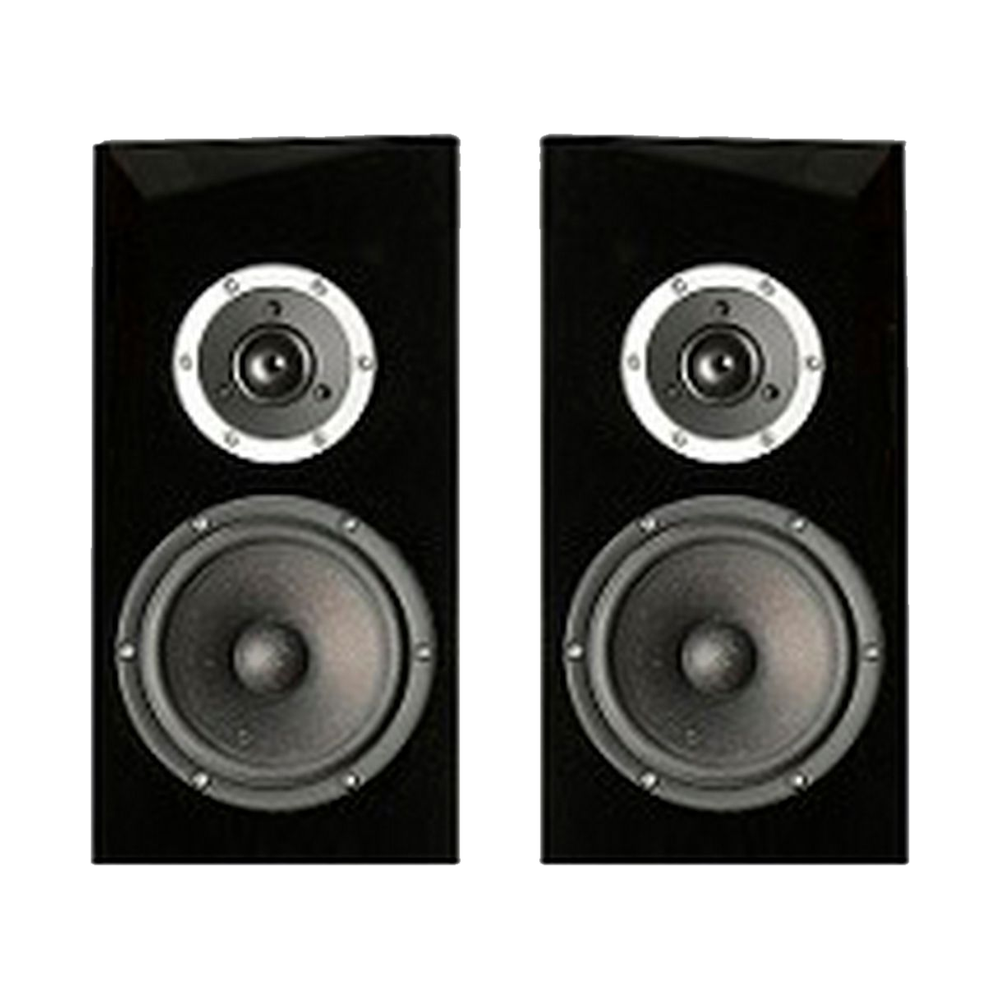

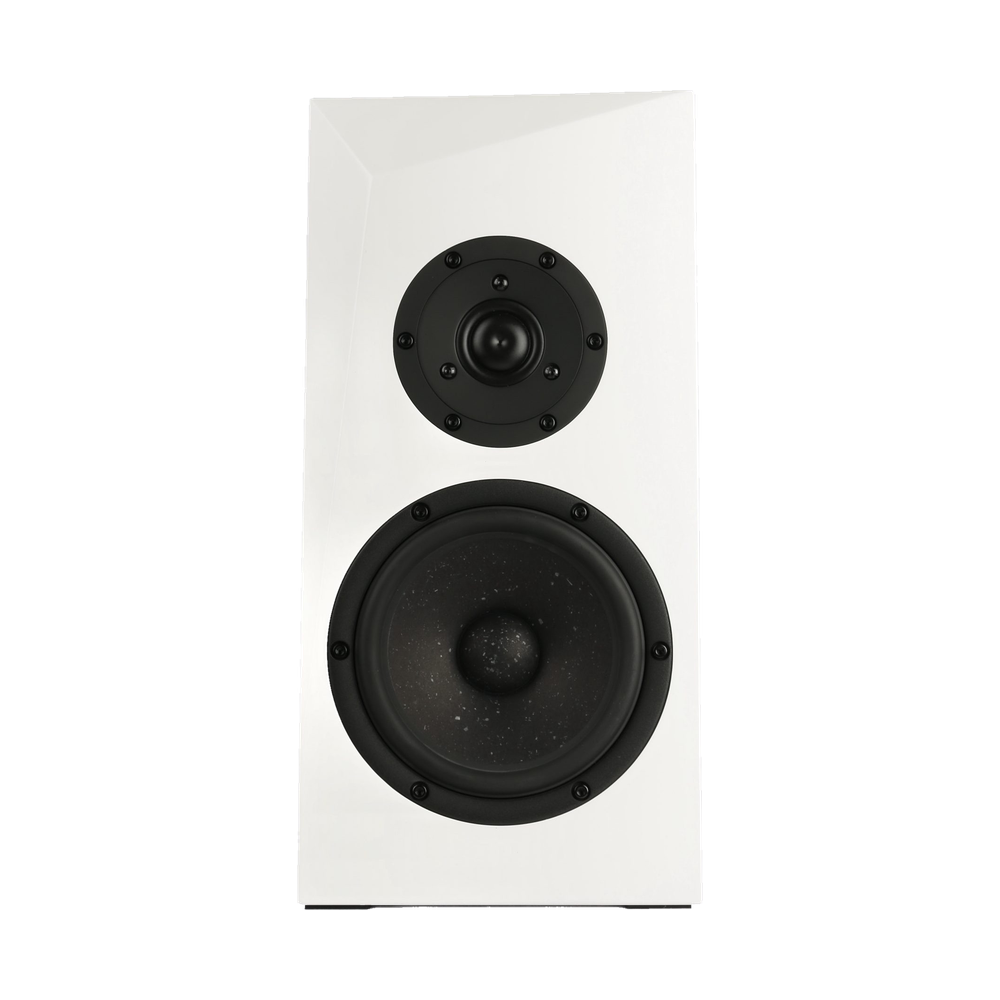

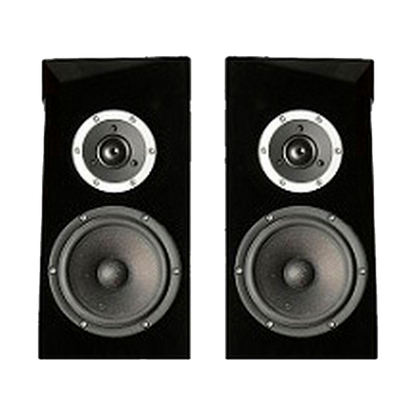

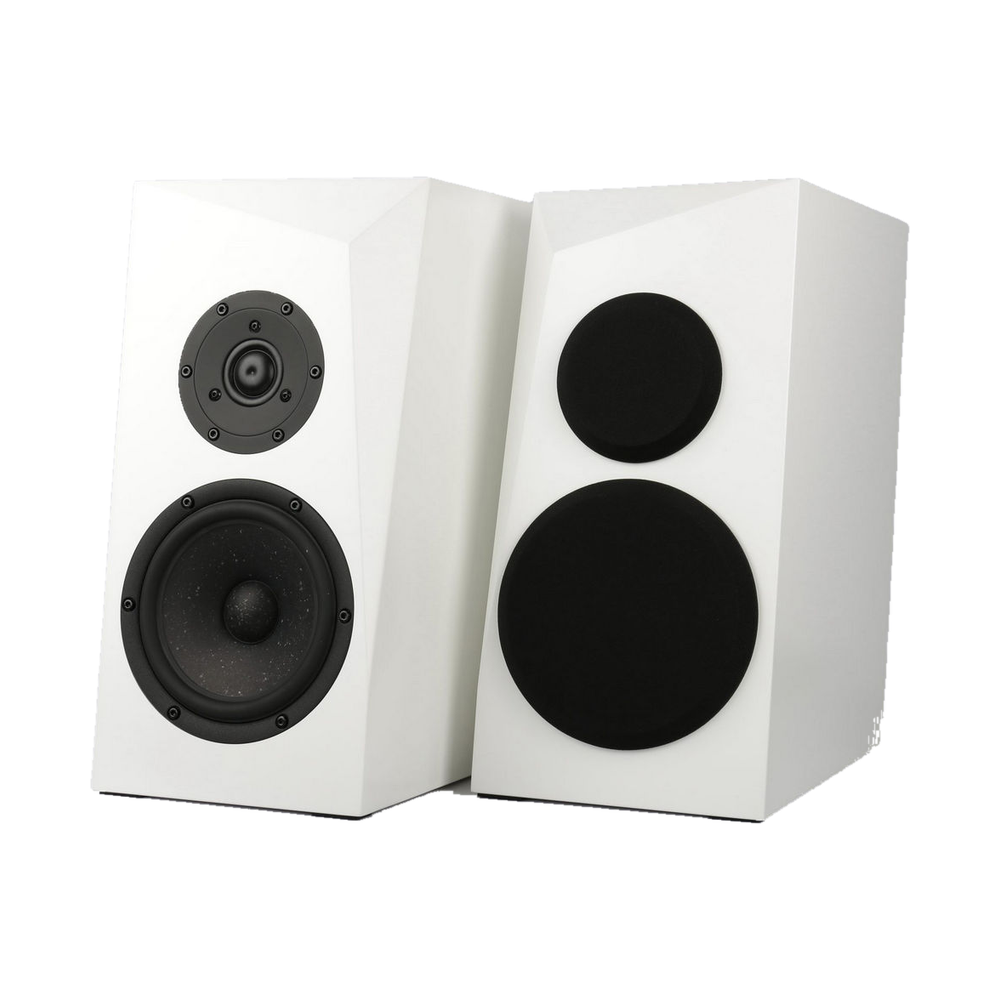

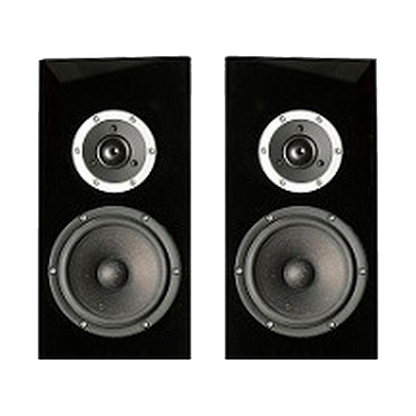

SB Acoustics' Ara is a two-way stand-mount: a 6.5" Satori papyrus-cone mid-woofer and a Satori tweeter in a faceted MDF cabinet that leans back 7° to line the drivers up in time. It's the smaller brother of the Rinjani.
The complete kit is a pair of speakers' worth of drivers, Wagner's assembled crossovers and SB's finished cabinets, all in one. Pick the tweeter (the Satori ring dome, or the Beryllium dome of the Ara Be), the cabinet finish and the driver colours. The cabinets come finished, so there's no woodwork: you fit the drivers and crossovers and wire them up.
The Ara Tx (TeXtreme drivers) has no complete-kit bundle, so it's bought as the parts listed below. So can any version, if you'd rather build it up a piece at a time.
Everything in the kit
Everything below is for a pair of speakers. Each part links to its own page, so you can also buy it a piece at a time.
Ring dome
| Qty | Part | Price | |
|---|---|---|---|
| 2 | SB Acoustics - 1 1/4" Satori Ring Tweeter - TW29R-B or TW29R | tweeter, black or silver | $229.95 each |
| 2 | SB Acoustics - 6.5" Satori Mid-Woofer - MW16P-4 or MW16PNW-4 | mid-woofer, black or white cone | $274.95 each |
| 1 | SB Acoustics - Ara Assembled Crossover Pair: Ring dome (TW29R) | crossover pair | $429.95 each |
| 1 | SB Acoustics - Ara Cabinet Pair | cabinet pair | $769.95 each |
Beryllium (Ara Be)
| Qty | Part | Price | |
|---|---|---|---|
| 2 | SB Acoustics - 1 1/4" Satori Dome Tweeter Beryllium Neo - TW29BN-B or TW29BN | tweeter, black or silver | $869.95 each |
| 2 | SB Acoustics - 6.5" Satori Mid-Woofer - MW16P-4 or MW16PNW-4 | mid-woofer, black or white cone | $274.95 each |
| 1 | SB Acoustics - Ara Assembled Crossover Pair: Beryllium (TW29BN) | crossover pair | $389.95 each |
| 1 | SB Acoustics - Ara Cabinet Pair | cabinet pair | $769.95 each |
TeXtreme (Ara Tx)
| Qty | Part | Price | |
|---|---|---|---|
| 2 | SB Acoustics - 1 1/4" Satori TeXtreme Dome Tweeter - TW29TXN-B-8 | tweeter | $429.95 each |
| 2 | SB Acoustics - 6.5" Satori TeXtreme Mid-Woofer - MW16TX-4 | mid-woofer | $459.95 each |
| 1 | SB Acoustics - Ara Assembled Crossover Pair: TeXtreme (TW29TXN) | crossover pair | $889.95 each |
| 1 | SB Acoustics - Ara Cabinet Pair | cabinet pair | $769.95 each |
Specifications
SB's figures for the ring dome version; the others are on SB's pages and manuals.
| Frequency range | 49-25000 Hz +/-3dB |
|---|---|
| Sensitivity ( 2.83V/1m ) | 87 dB |
| Nominal impedance | 4 Ω |
| Max SPL | 105 dB |
| Recommended amplifier | 40-150 W |
| Cross-over frequency | 3000 Hz |
| Enclosure type | Bass reflex |
| Port tuning frequency | 36.5 Hz |
| Cabinet material | 18 mm MDF |
| Speaker dimension (HxWxD) | 391 x 190 x 388 mm ( 15.4 x 7.48 x 15.27 inch ) |
| Net weight | Cabinet only 8.06 kg ( 17.77 lb ), full assy 9.6 kg ( 21.16 lb ) |
Downloads
Ara User Manual (SB Acoustics)
Ara Cabinet Drawings (SB Acoustics)
